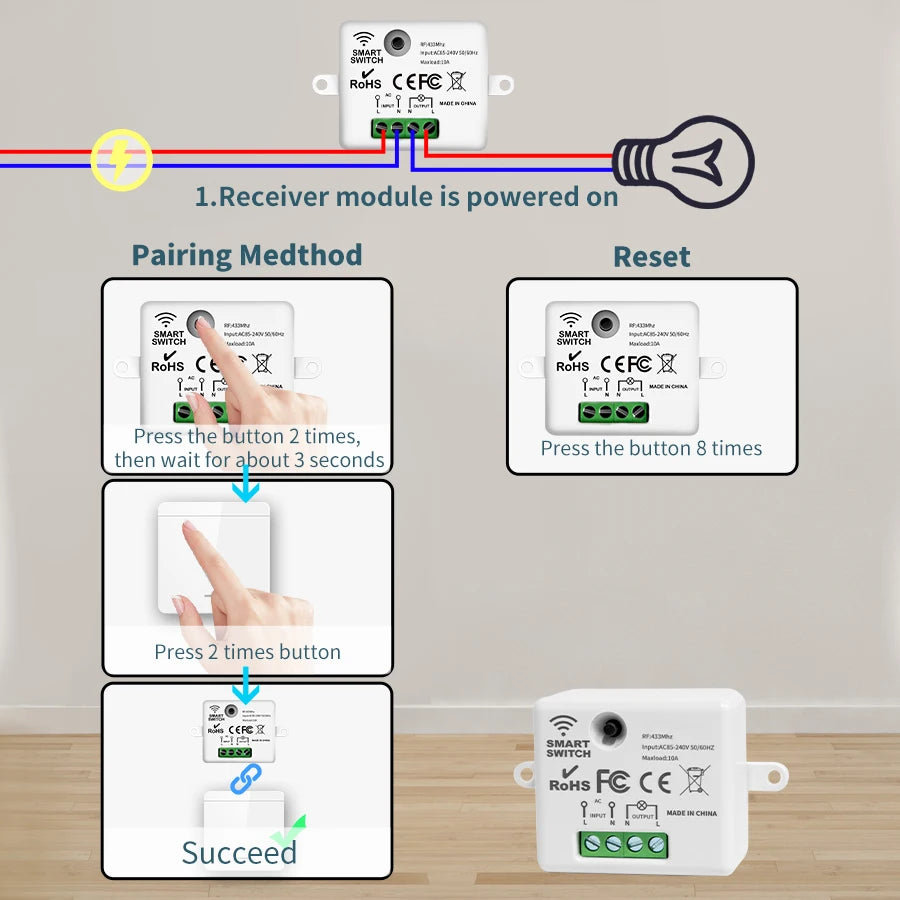

Working principle of RF433 circuit breaker:

1. Press the learning button (433 circuit breaker) once, then press the remote control button that comes with it again, and the indicator light will flash twice (learning switch).
2. Press the learning button (433 circuit breaker) twice in a row, and then press the button on the remote control that needs to be equipped. The indicator light will flash twice (learning on).
3. Press the learning button (433 circuit breaker) three times in a row, and then press the remote control button to be equipped. The indicator light will flash twice (learning off).
4. Press the learning button (433 circuit breaker) continuously for 6 times, and the light will flash 3 times (power on start function), and it will default to the on state when powered on.
5. Press the learning button (433 circuit breaker) continuously for 7 times, and the light will flash 3 times (the function will not be activated when powered on).
6. Press and hold the learning button (433 circuit breaker) for more than 5 seconds, the indicator light will flash twice (cancel all remote control codes).

Specification:

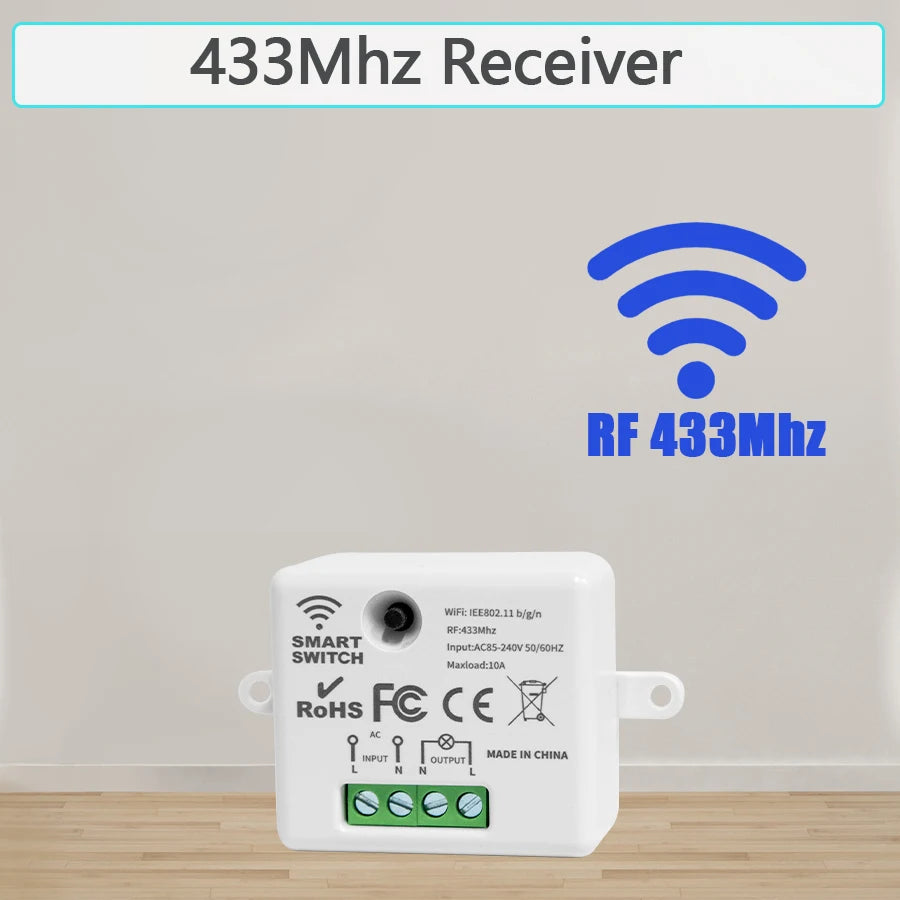

controller (Receiver)

Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433MHZ
Power consumption in standby mode: <0.3W
Load power: <1100W
Receiving sensitivity: -108dBM
Working way:wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10*C~+70"C
Size: 47.4*42*22.8 (mm)

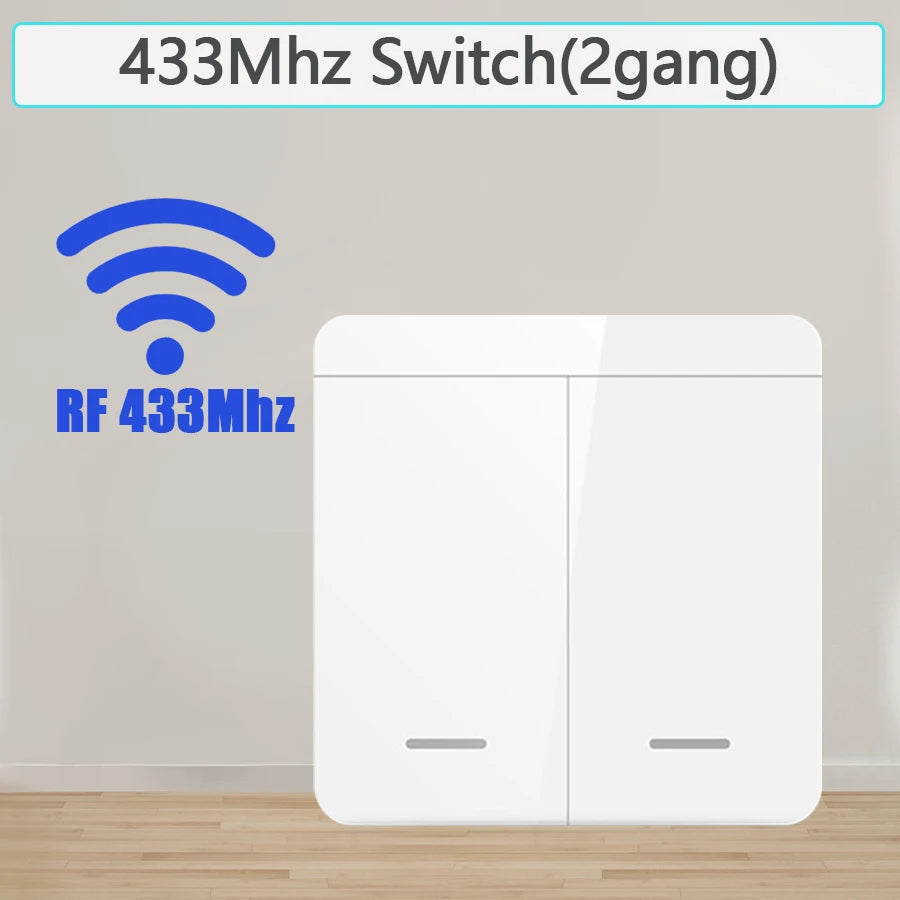

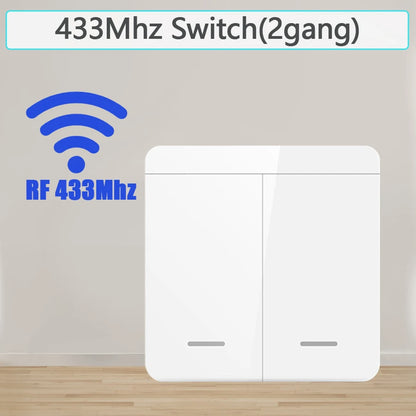

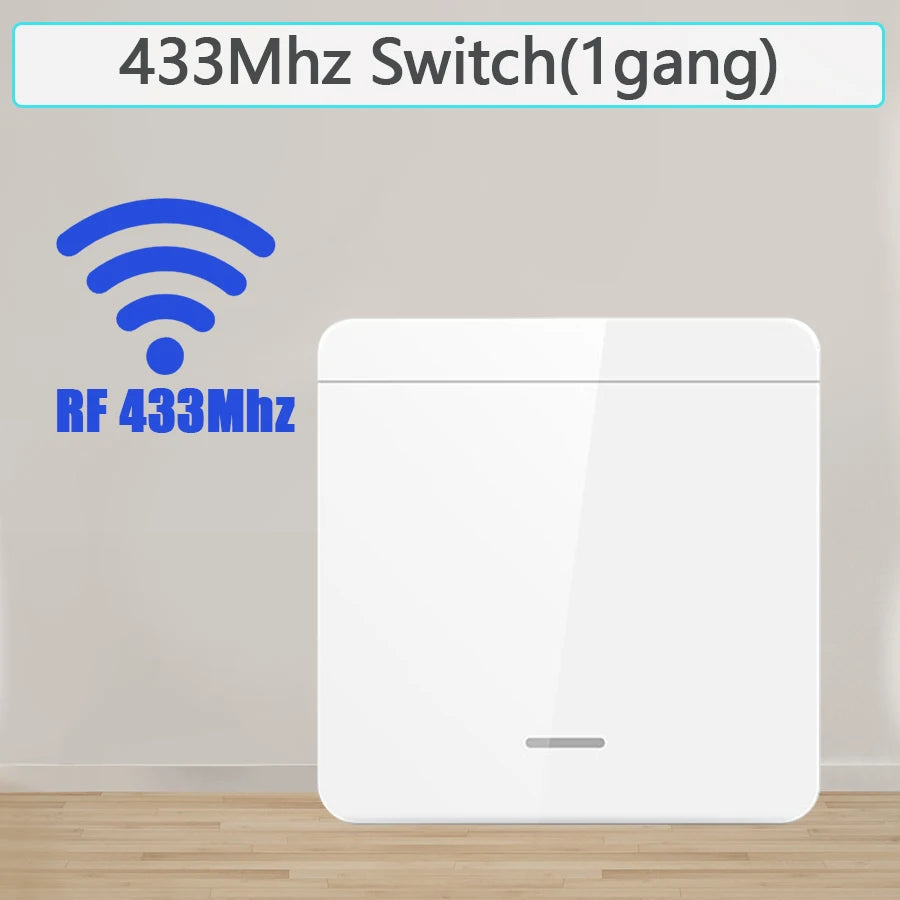

Wireless Wall Switch

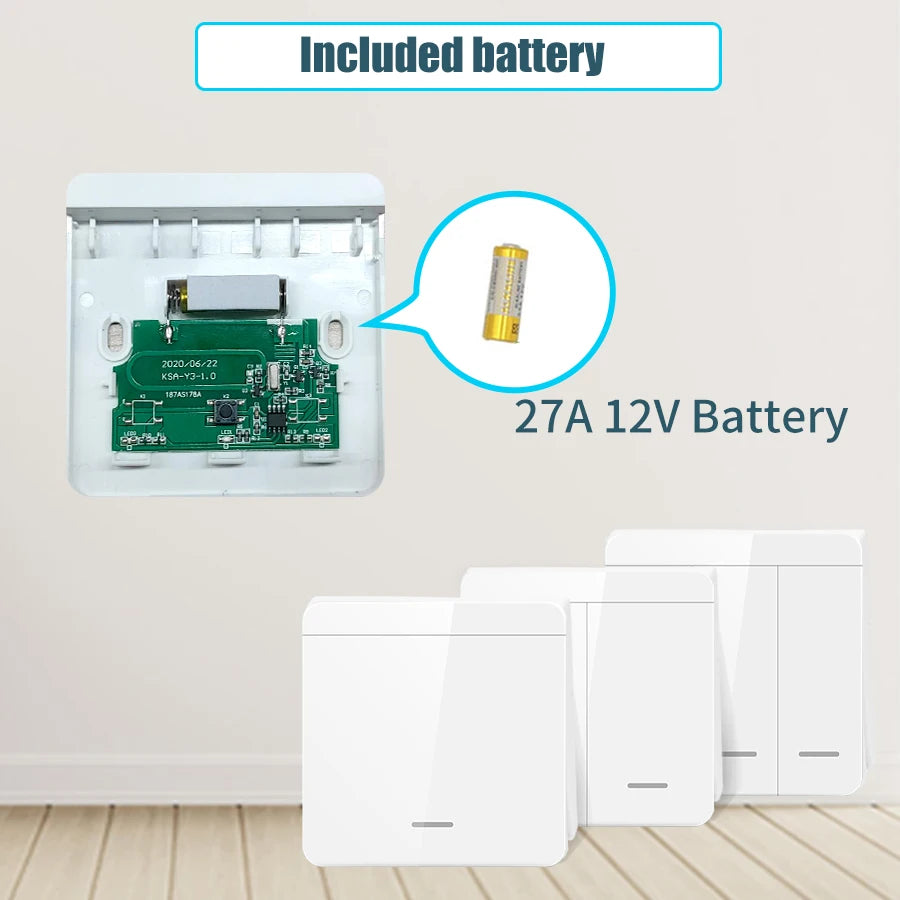

Working voltage: DC3.0V
working frequency:433MHZ
Power consumption in standby mode:<1uA
Transmitter power: <10mW
Working way: wireless control
Coding way: EV1527 learning code
Modulation: ASK
Working temperature:-10"C~+70*C
Size: 86*86* 15mm

Feature:

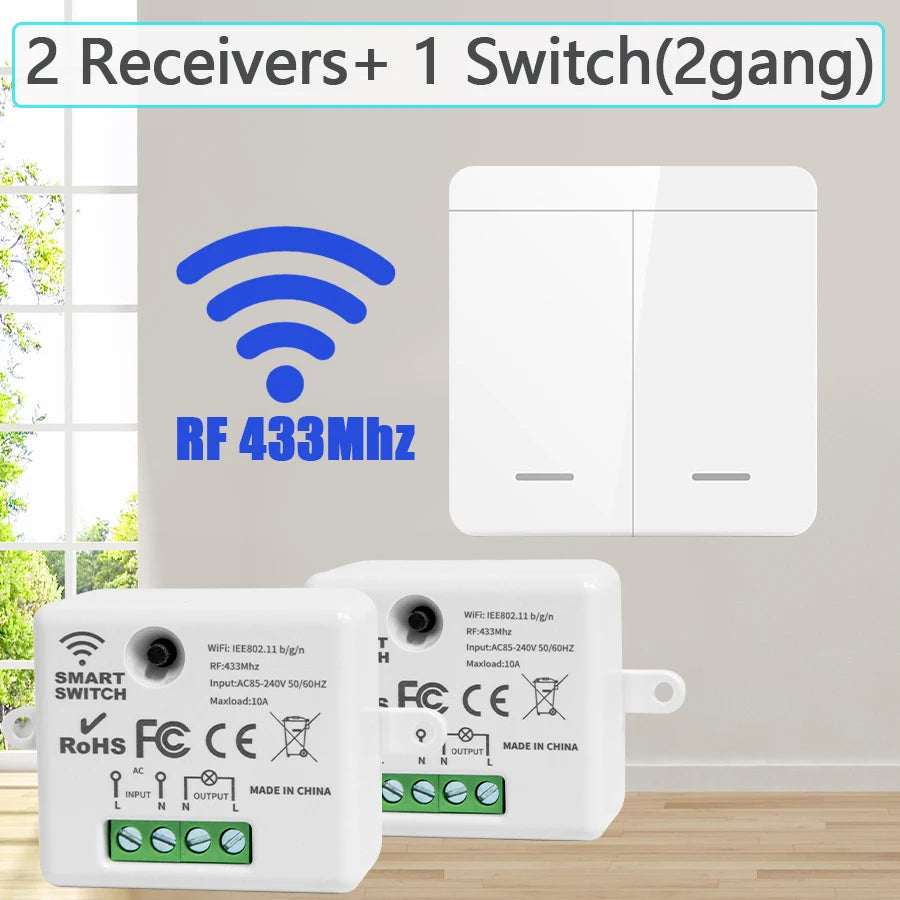

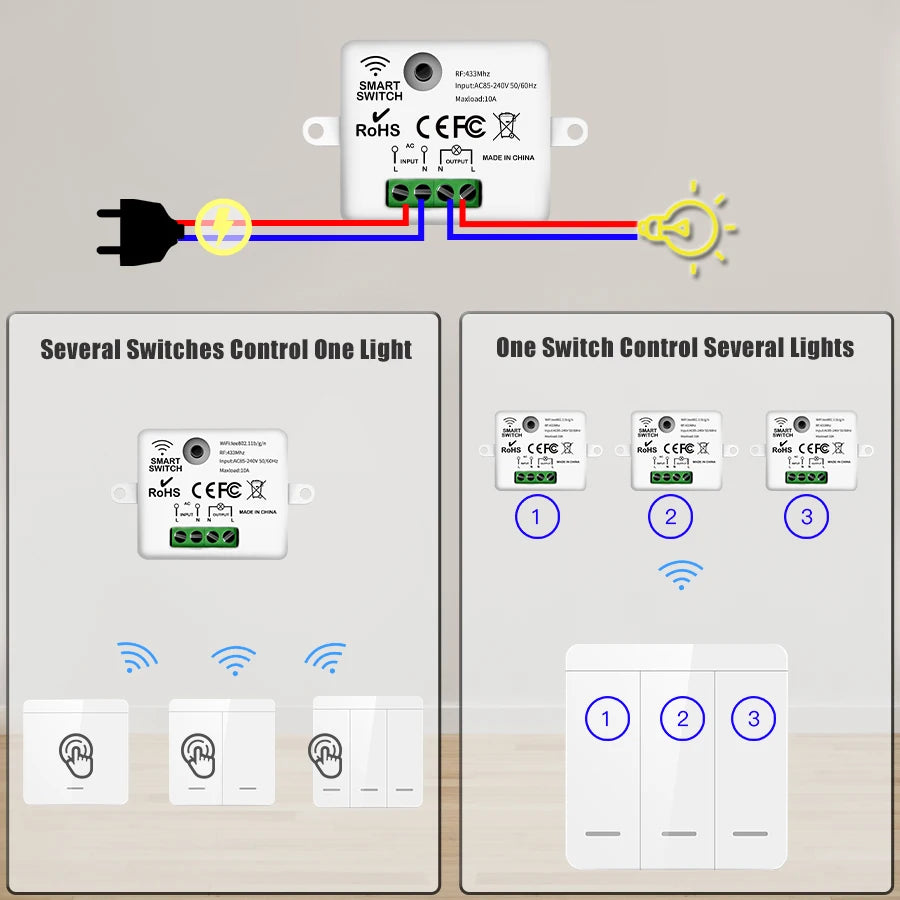

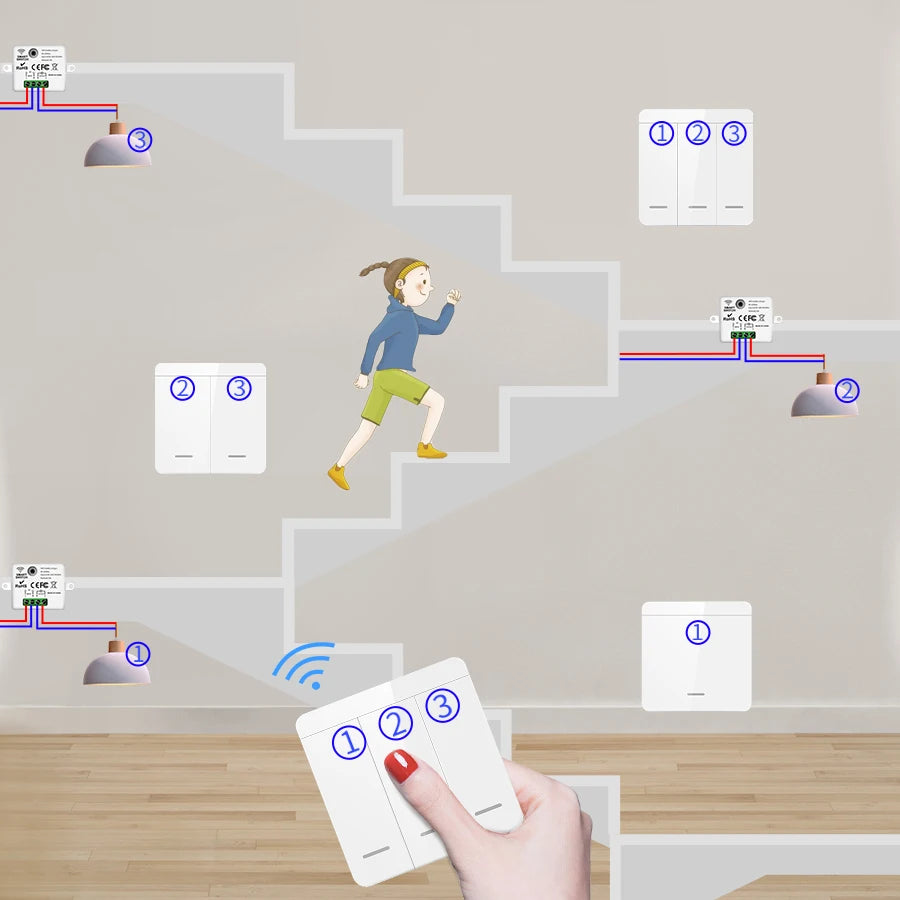

1.Multi switches can control different receivers.Save energy,avoid darkness.

2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.
