SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

DIY Supplies: Electrical

Data Record: No

Electronic: No

High-concerned chemical: None

Material: Plastic

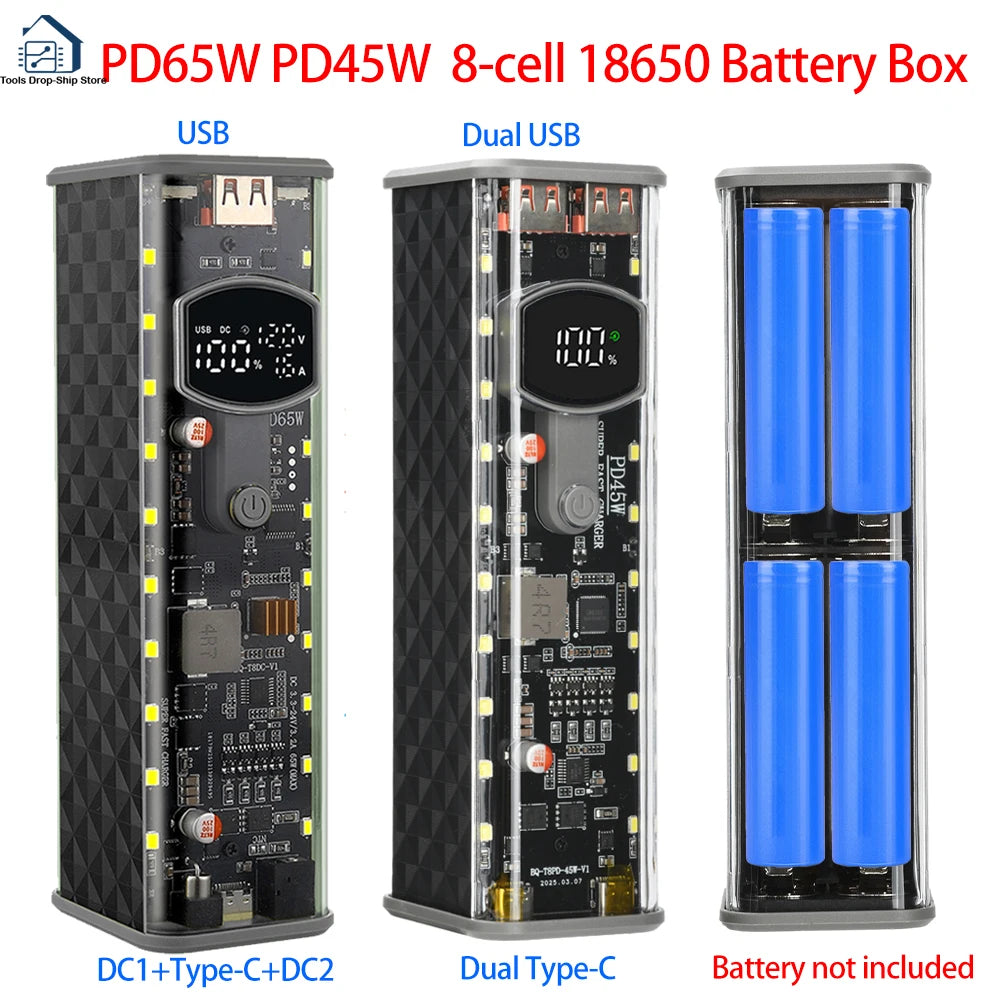

Model Number: 8-cell 18650 Battery Charger Case

Origin: Mainland China

Output Voltage: 5V

Semi-finishedproduct: No

Size: DIY Power Bank Case

Style: Fast Charging Battery Storage Box

Type: Power Bank Battery Case

semi_Choice: yes

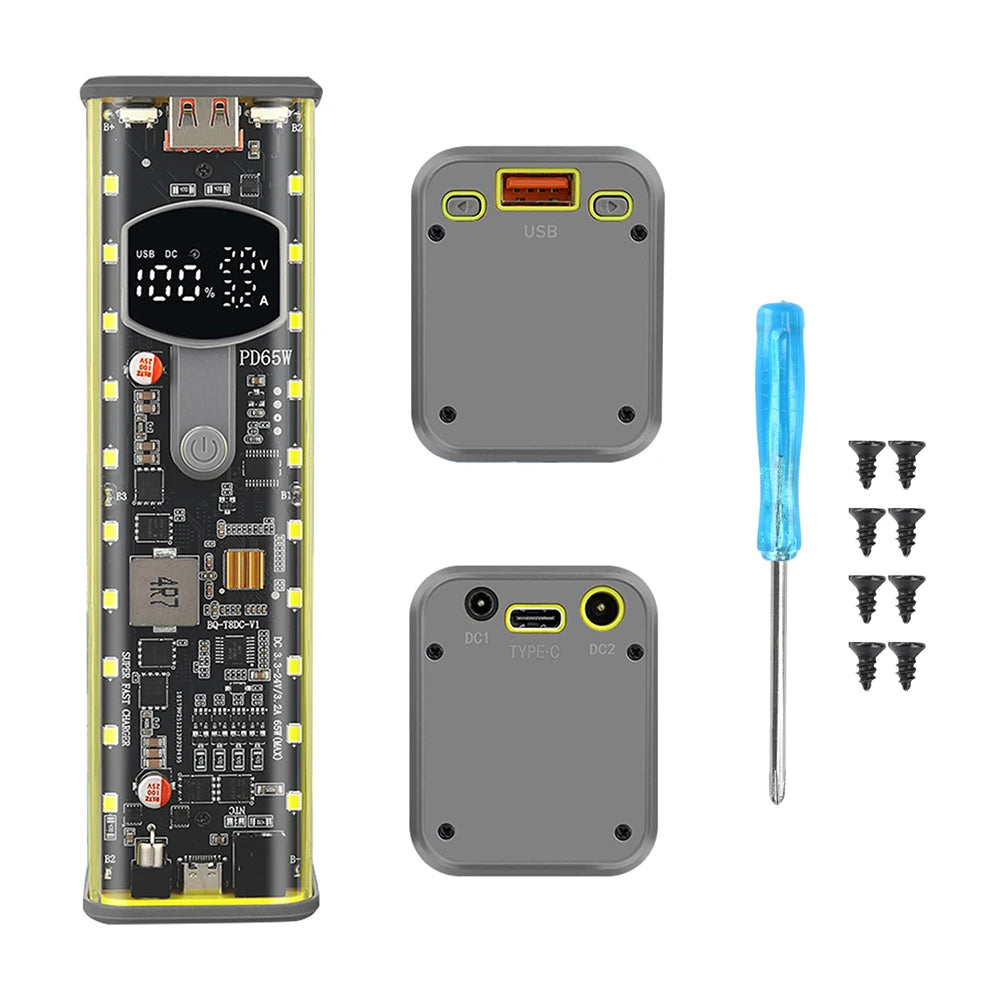

65W 8x 18650 USB+Type-C

Product selling points:

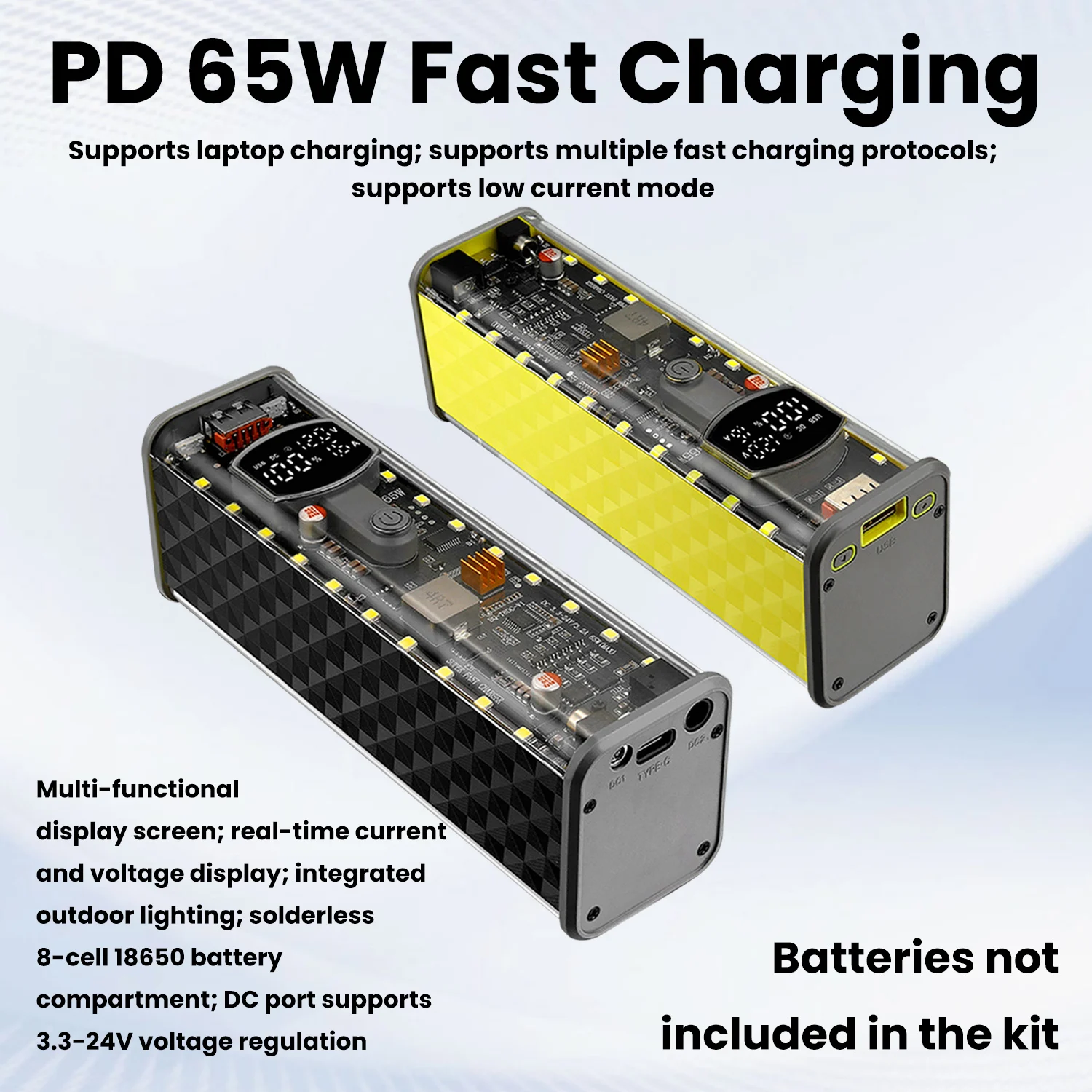

1. PD 65W high-power fast charging, compatible with multiple devices, providing efficient charging experience

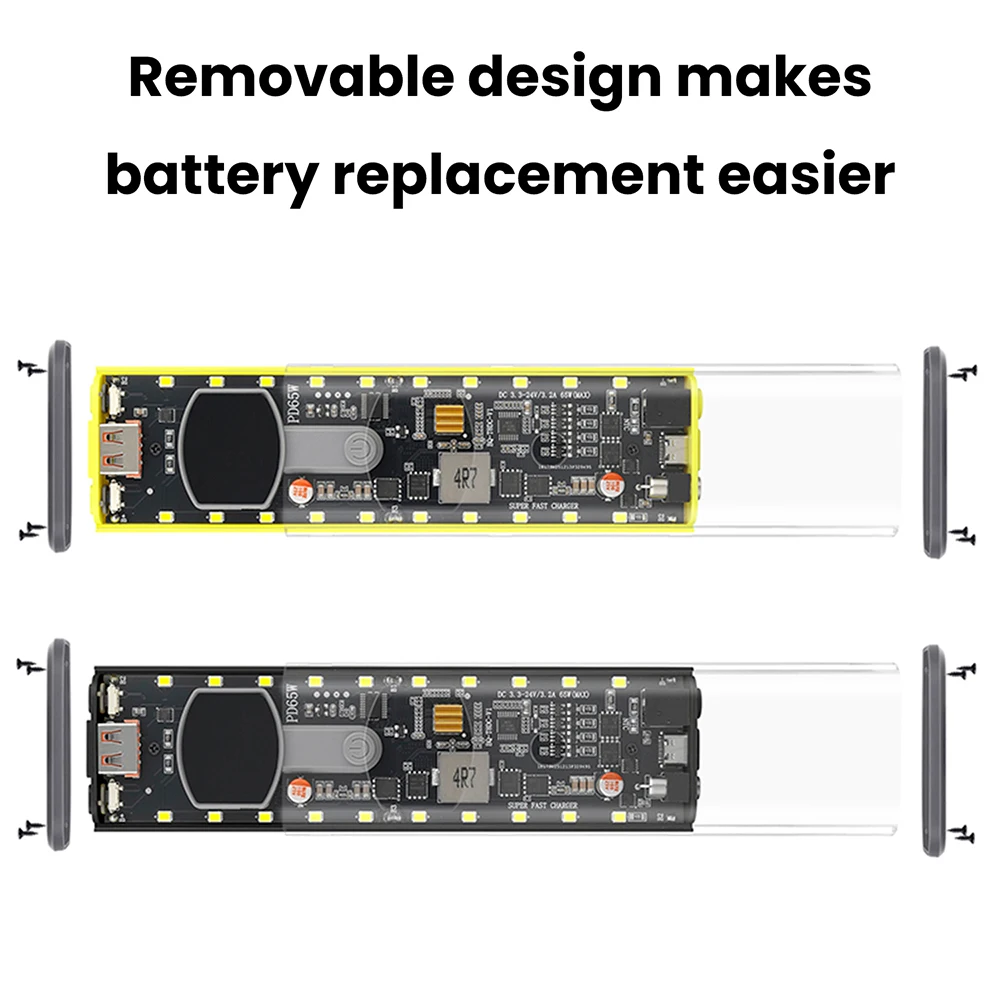

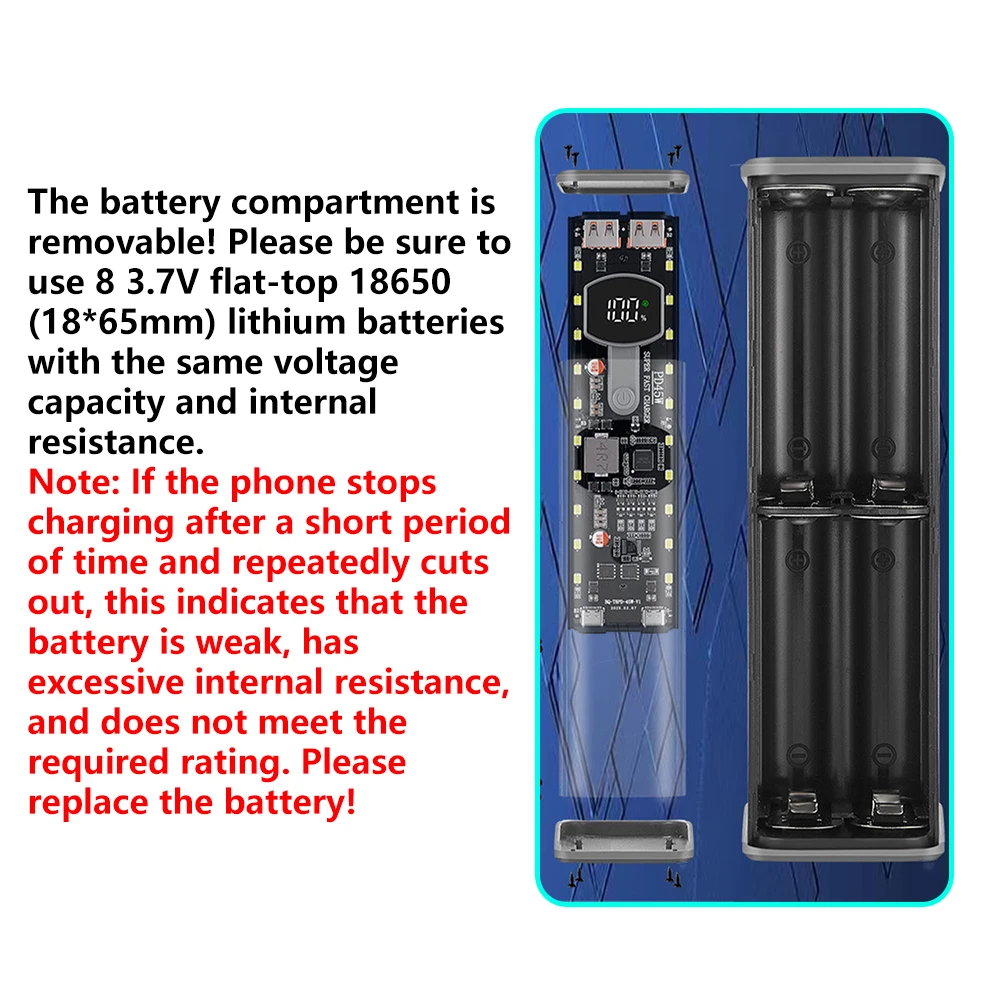

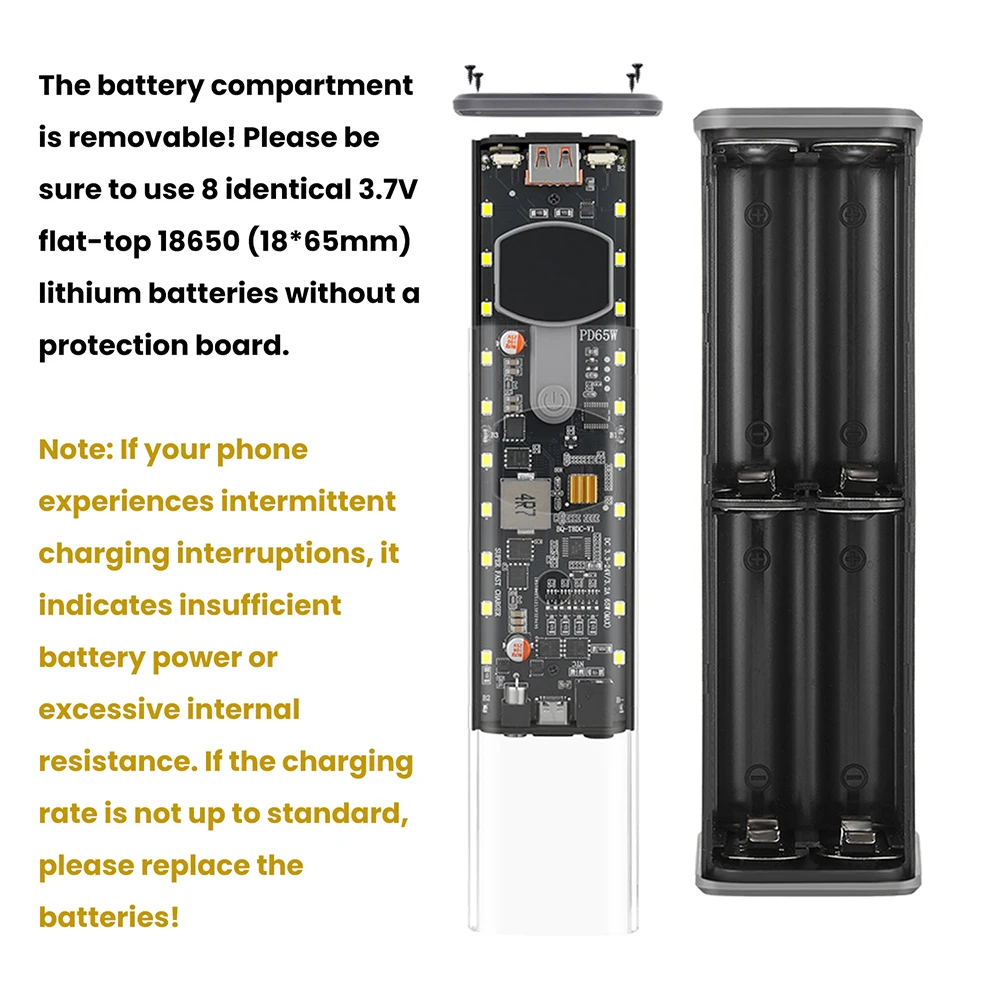

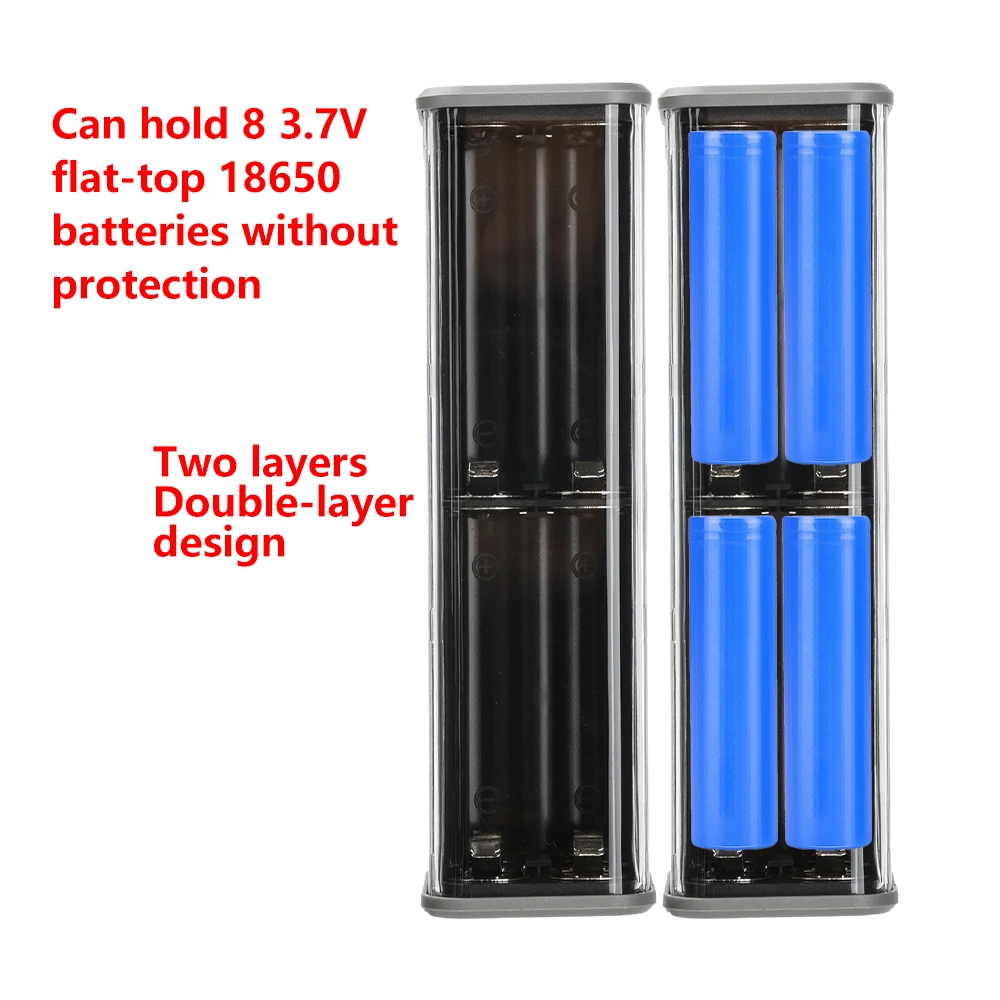

2. Welding free 8-cell 18650 battery box, large capacity energy storage, DIY safe and convenient

3. DC interface voltage adjustable from 3.3-24V, compatible with electronic devices such as laptops

4. Multi protocol fast charging recognition, providing efficient and convenient charging experience

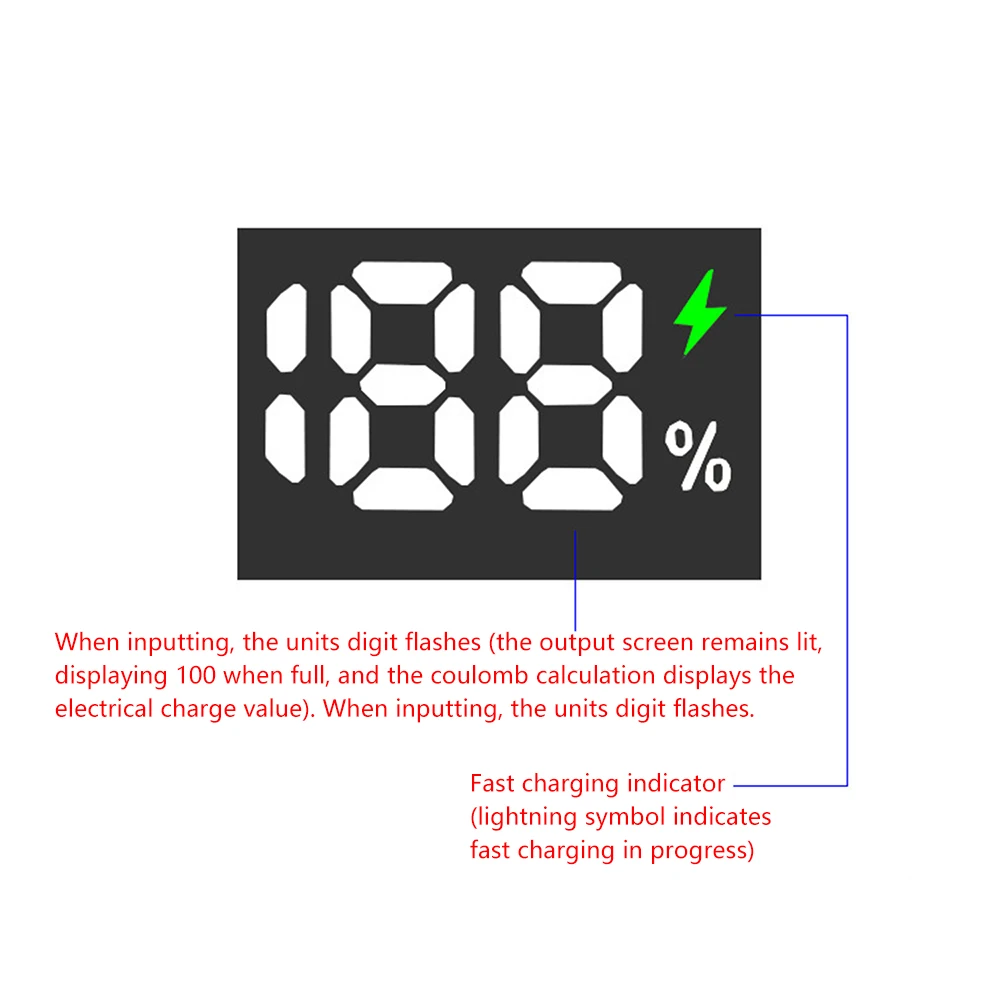

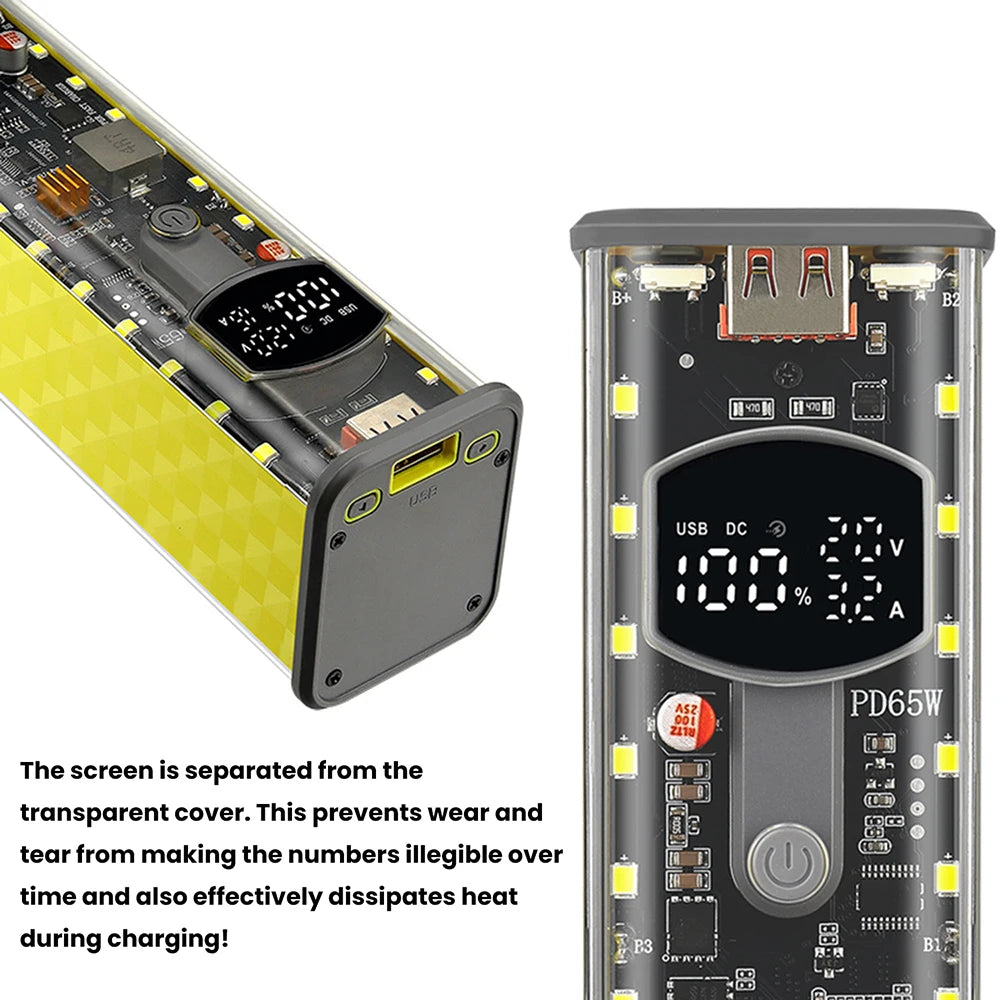

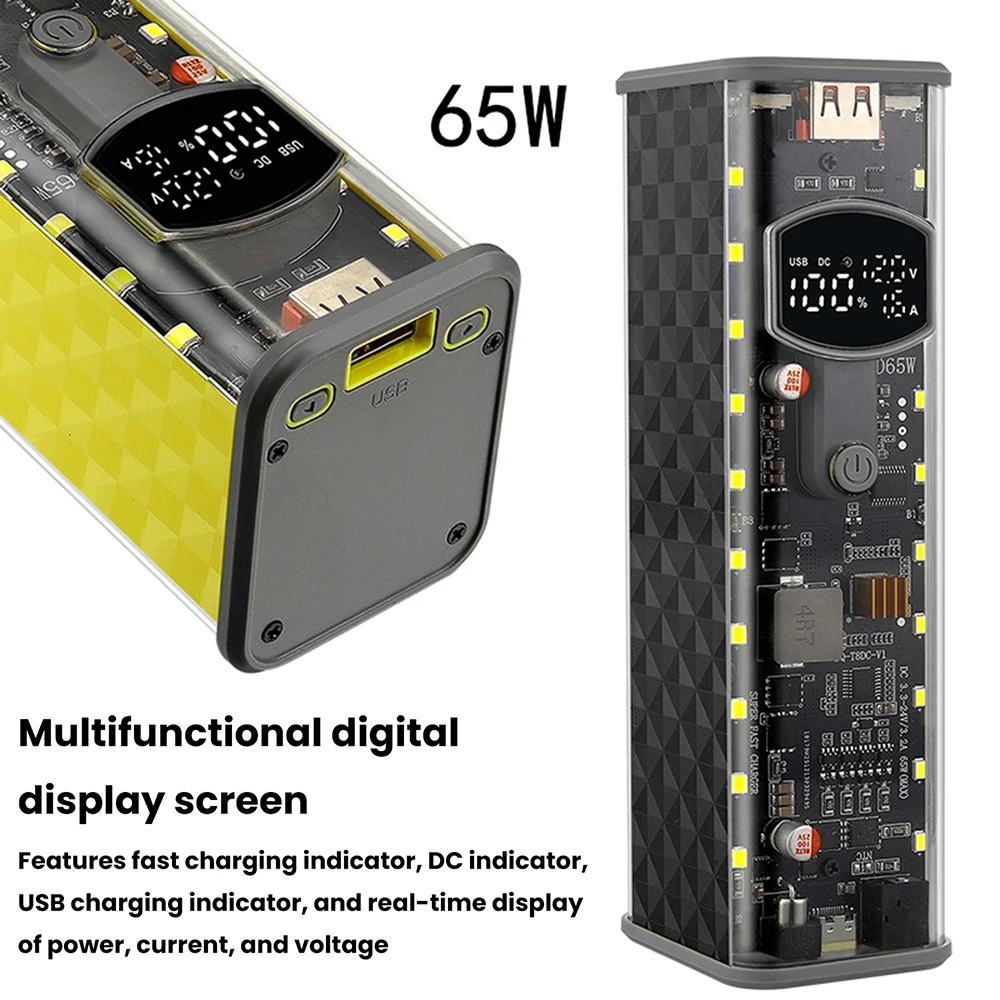

5. Multi functional display screen with real-time voltage and current display, high brightness LED outdoor lighting

Product Parameters

Battery Box Solution: DC65W+PD65W+Super Flash Charge 60W+Super Fast Charge 40W+Flash Charge 30W+Fast Charge 25W+Regular Charge 15W (Most mobile phone manufacturers limit non original devices to within 33W)

Output power: 65W

Peak value: 68W/3.2A (MAX)/3.3V-24V

Input power: 65W MAX

Attention: The charger and charging cable need to have high performance

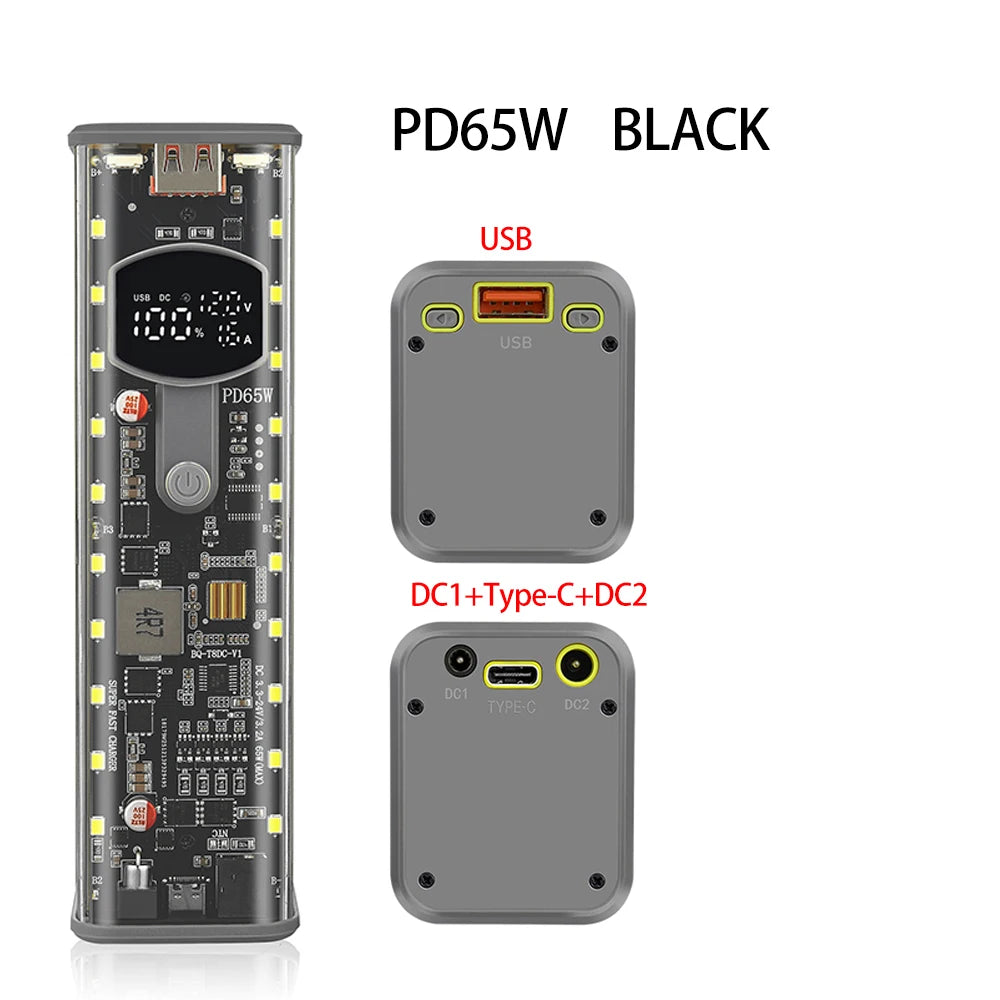

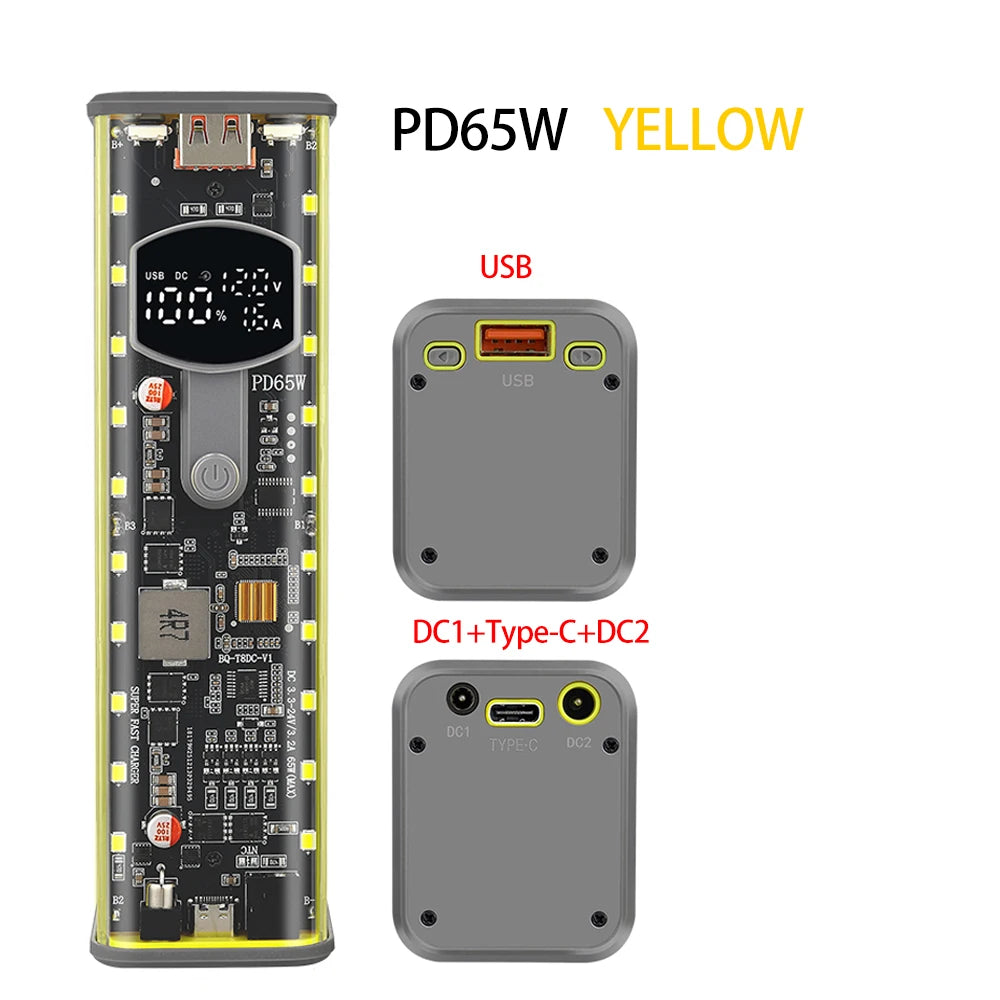

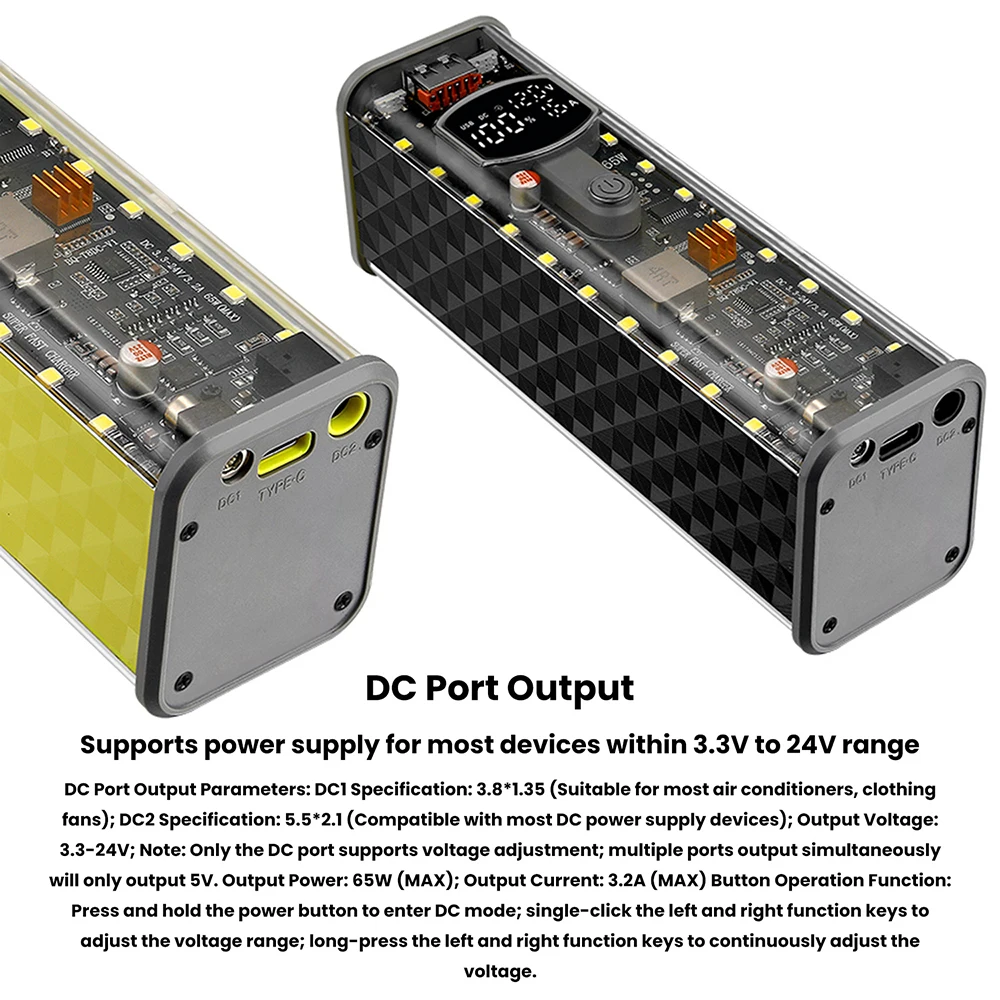

DC port output parameters:

DC1 specification: 3.8 * 1.35 (suitable for most air conditioning fans)

DC2 specification: 5.5 * 2.1 (compatible with most DC power supply devices)

Output voltage: 3.3-24V

Note: Only the DC port supports voltage regulation, and multiple ports can output only 5V simultaneously

Output power: 65W (MAX)

Output current: 3.2A (MAX)

Key operation function: Long press the power button to enter DC mode, click the left and right function keys to adjust the voltage range, long press the left and right function keys to continuously adjust the voltage

USB output and supported fast charging protocols:

5V/3.2A (normal output); SCP：40W； UFCS：60W

SVOOC: 65W (requires high-performance flash charging cable)

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC1.0: 20W (requires flash charging cable); PE1.1：7.5W

PE2.0：30W； QC3+：45W； QC3.0：36W； QC2.0：24W； AFC：18W； FCP：18W； SFCP：18W

Most mobile phones are limited to 33W, with multiple ports simultaneously outputting only 5V for regular charging

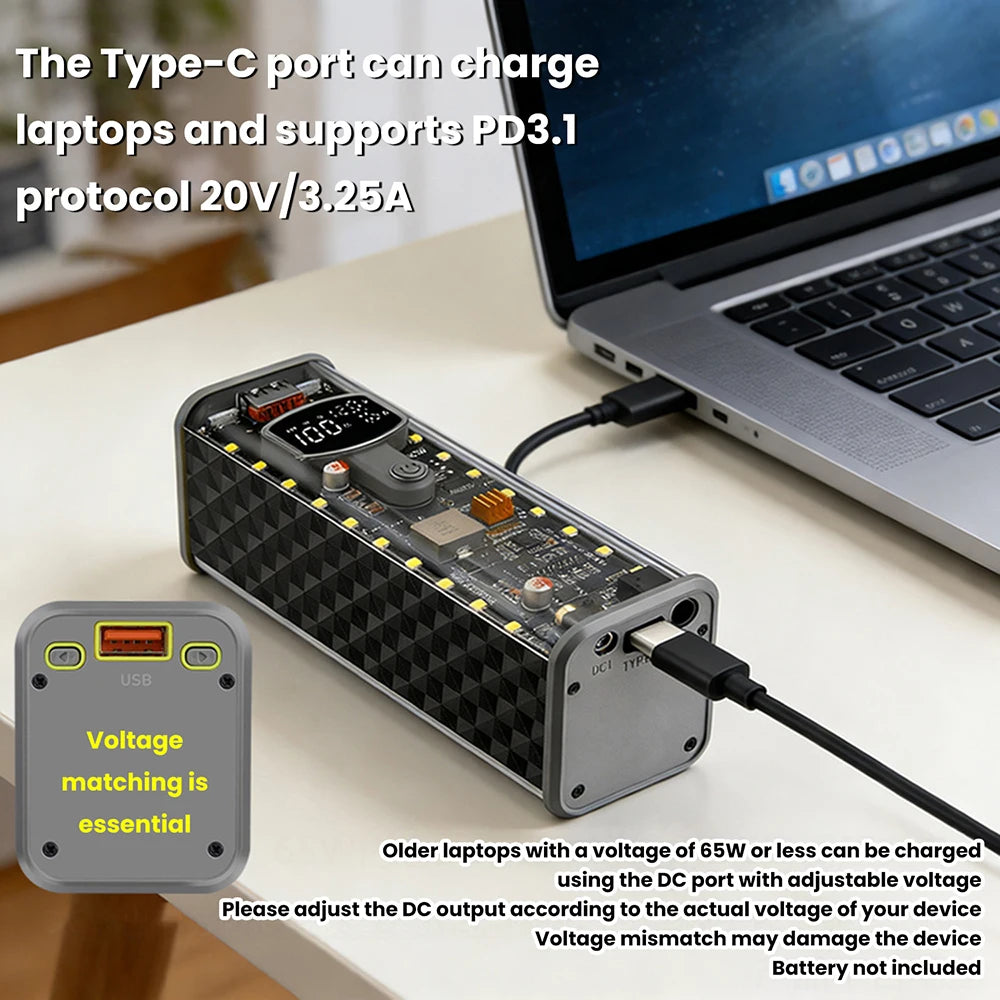

Type-C output and supported fast charging protocols: (supporting laptop charging)

5V/3.2A (normal output); PD3.1：65W； PPS：60W；

SCP：40W； UFCS：60W;

SVOOC: 65W (requires high-performance flash charging cable)

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC1.0: 20W (requires flash charging cable); PE1.1：7.5W

PE2.0：30W； QC3+：45W； QC3.0：36W； QC2.0：24W； AFC：18W； FCP：18W； SFCP：18W

；

Most mobile phones are limited to 33W, with multi port output and no fast charging

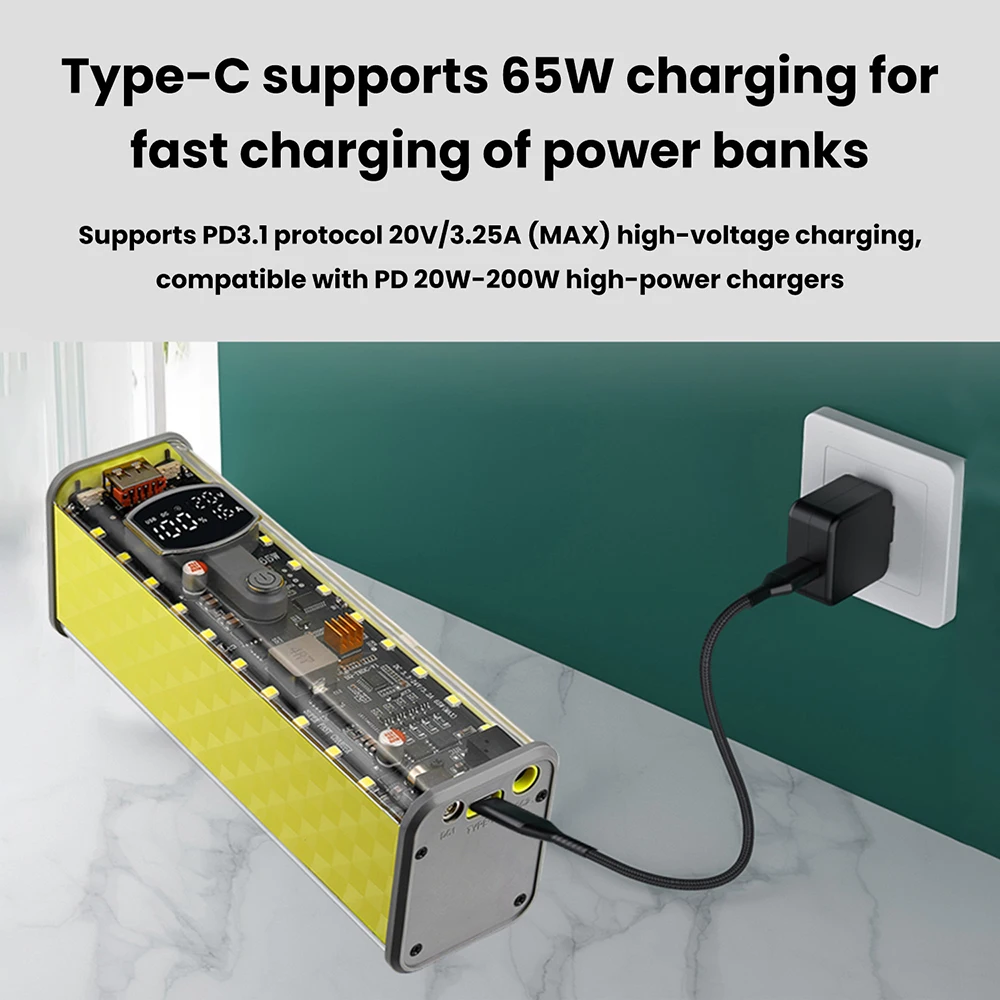

Type-C input and supported fast charging protocols:

5V/3.2A (normal input); PD3.1：65W（MAX）; SCP：40W； UFCS：60W； SVOOC: 65W (requires high-performance flash charging cable);

VOOC 4.0: 30W (requires high-performance flash charging cable)

VOOC1.0: 20W (requires flash charging cable); AFC：18W； FCP：18W；

Support 5V charging and discharging simultaneously;

Attention: If the private protocol of the phone does not support (USB does not have fast charging), PD charging (TYPE-C output) can be used. PD public protocol output is more stable and has higher output power

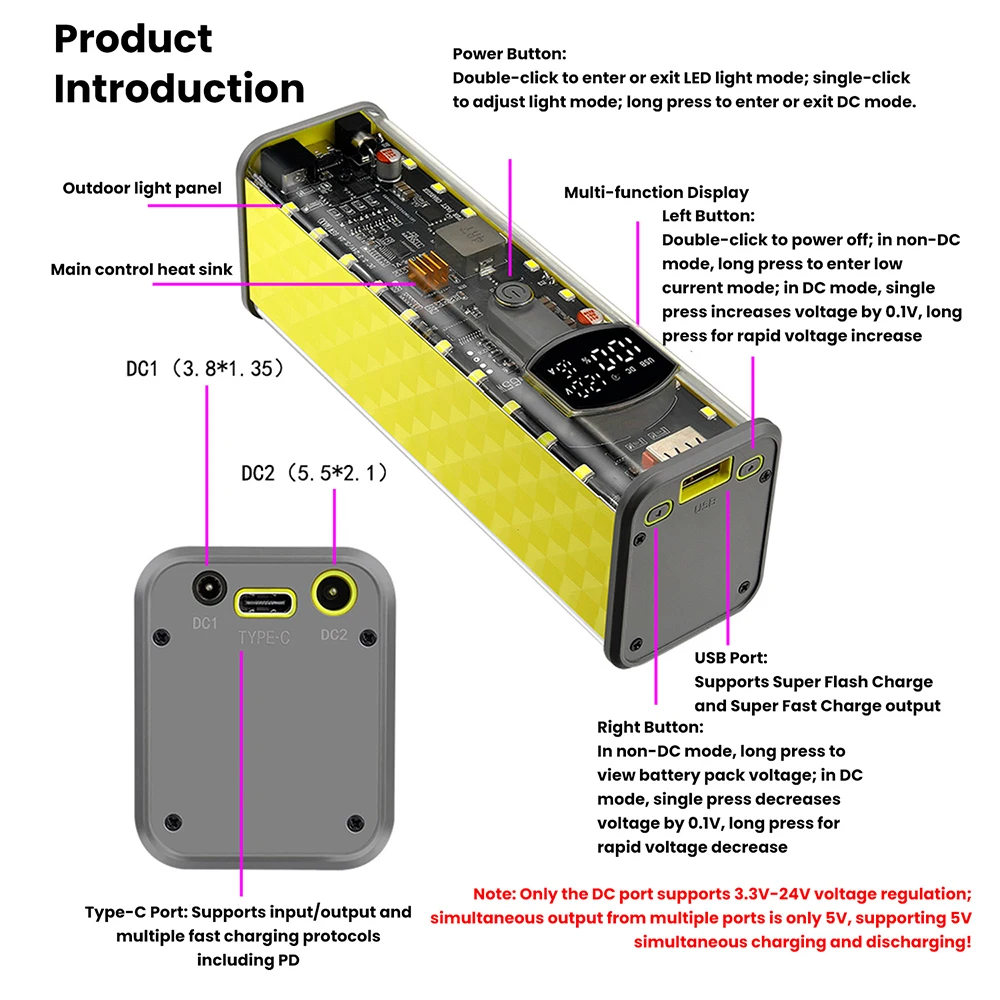

Key functions:

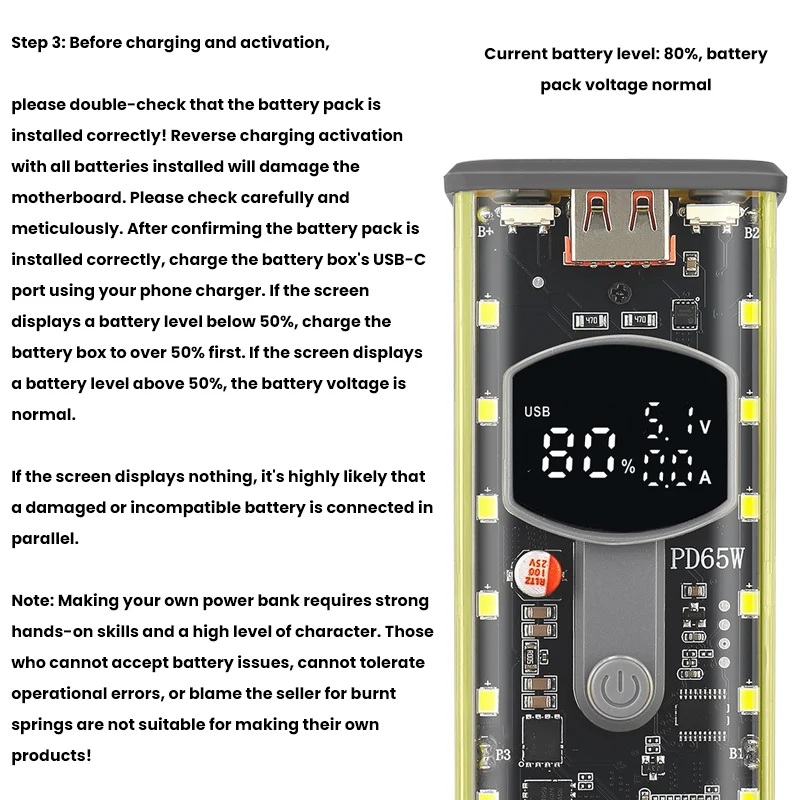

All buttons can be clicked to display the battery level;

Power button: double-click to enter or exit LED light mode; Click to adjust the light mode; Long press to enter or exit DC mode;

Left button: Double click to shut down. In non DC mode, long press to enter low current mode. In DC mode, click to step up to 0.1V, long press to quickly step up;

Right click: In non DC mode, long press to view the battery pack voltage. In DC mode, click to step down by 0.1V, and long press to quickly step down;

Packing list:

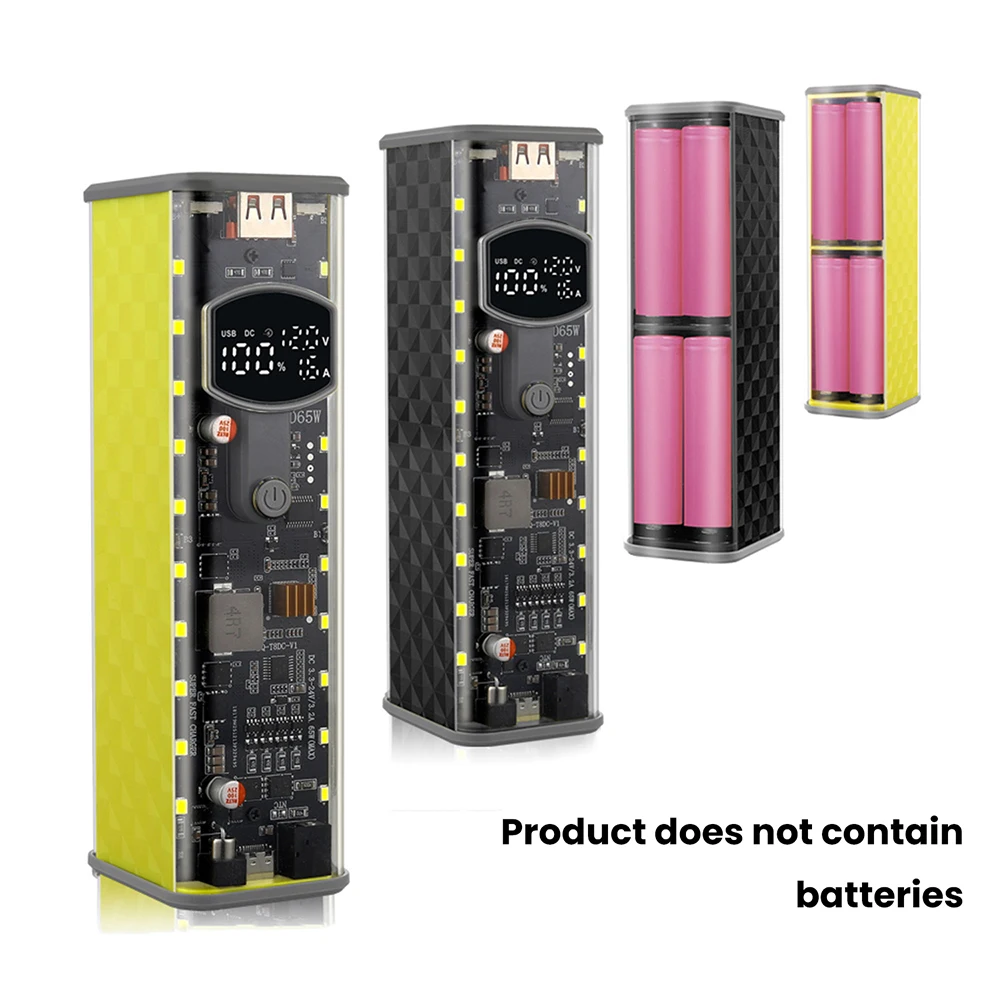

Power bank case * 1 (excluding battery)

Accessory package * 1

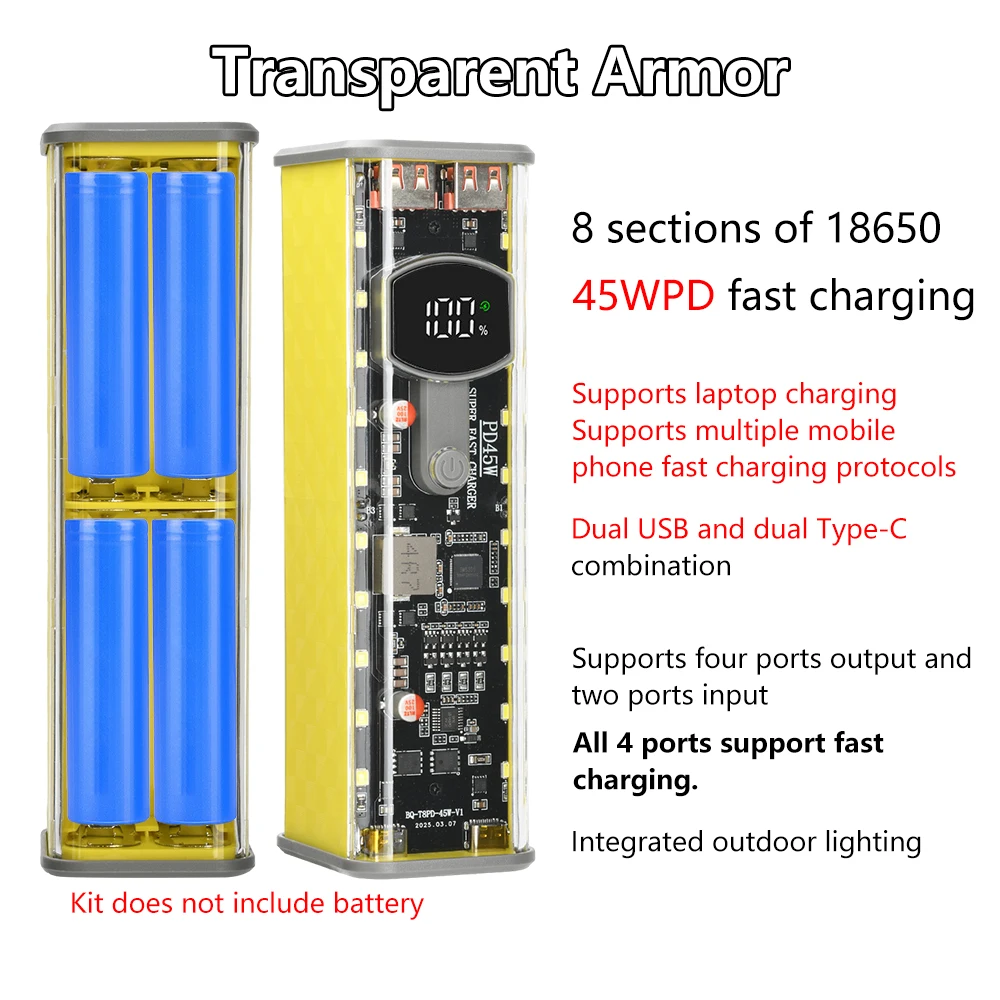

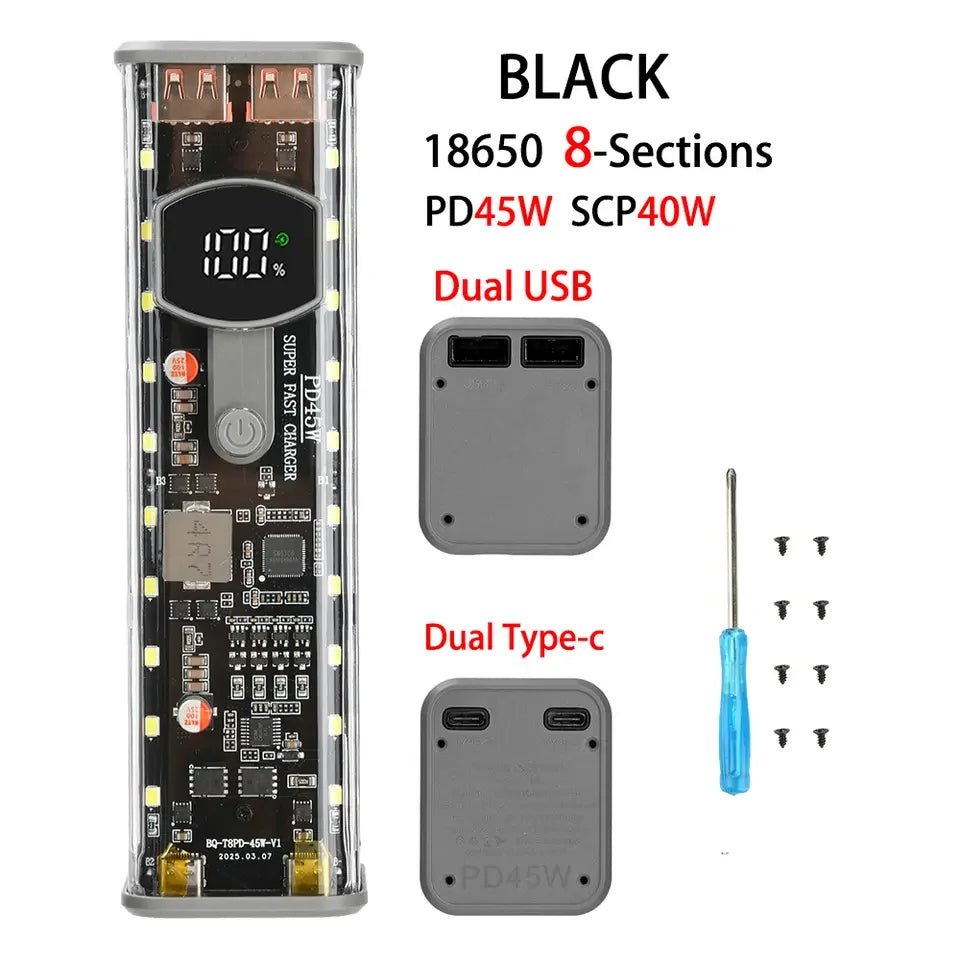

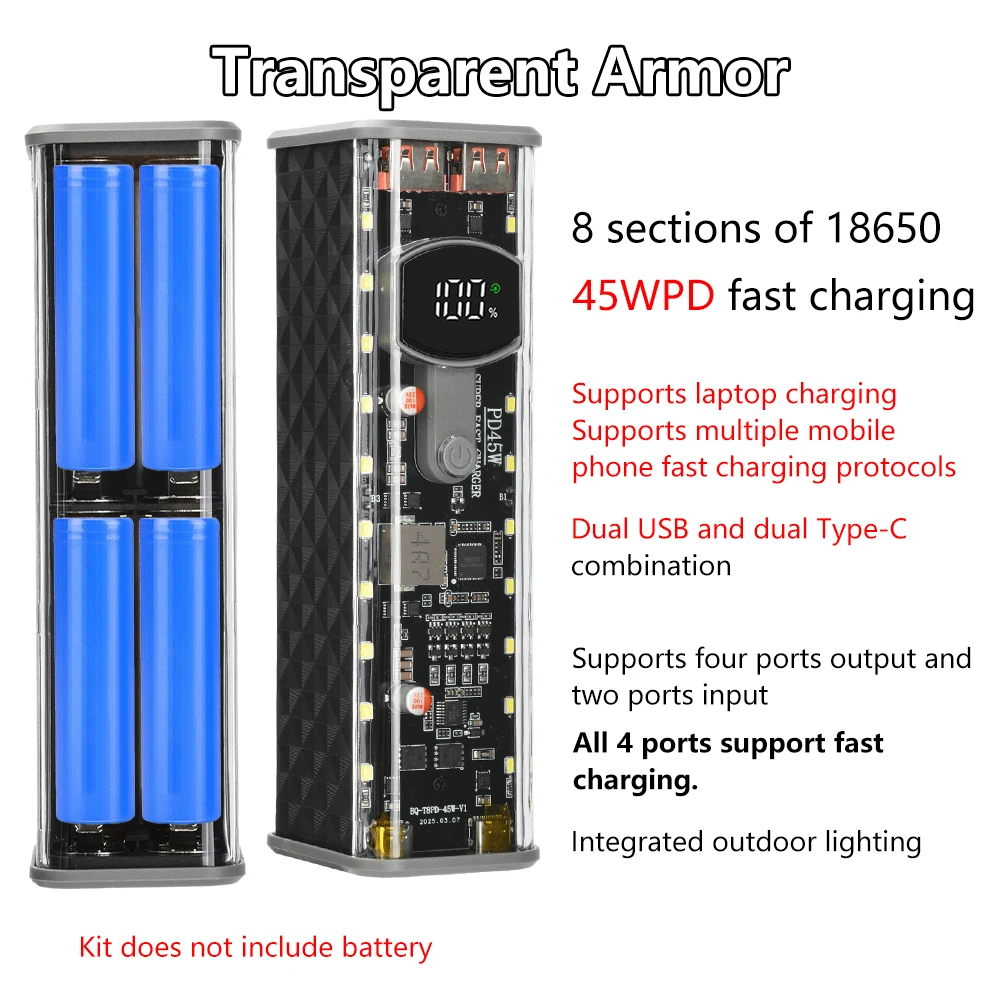

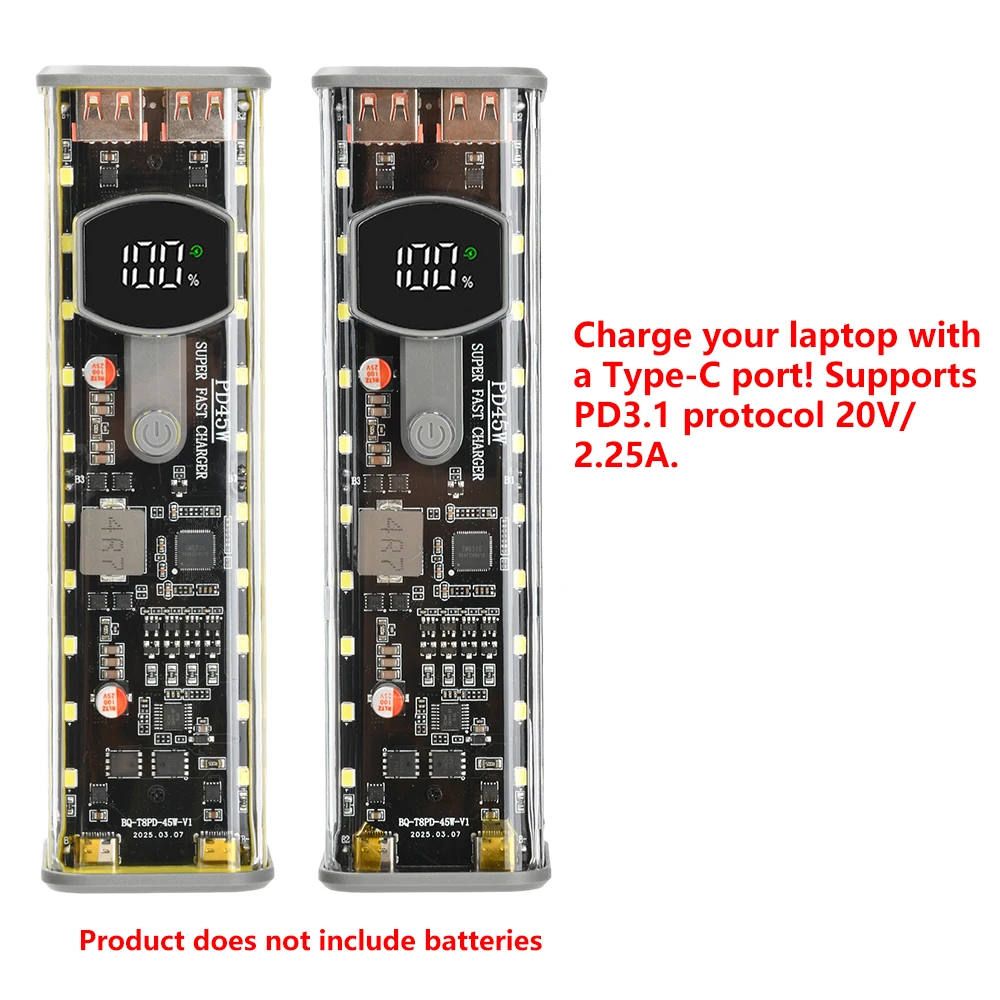

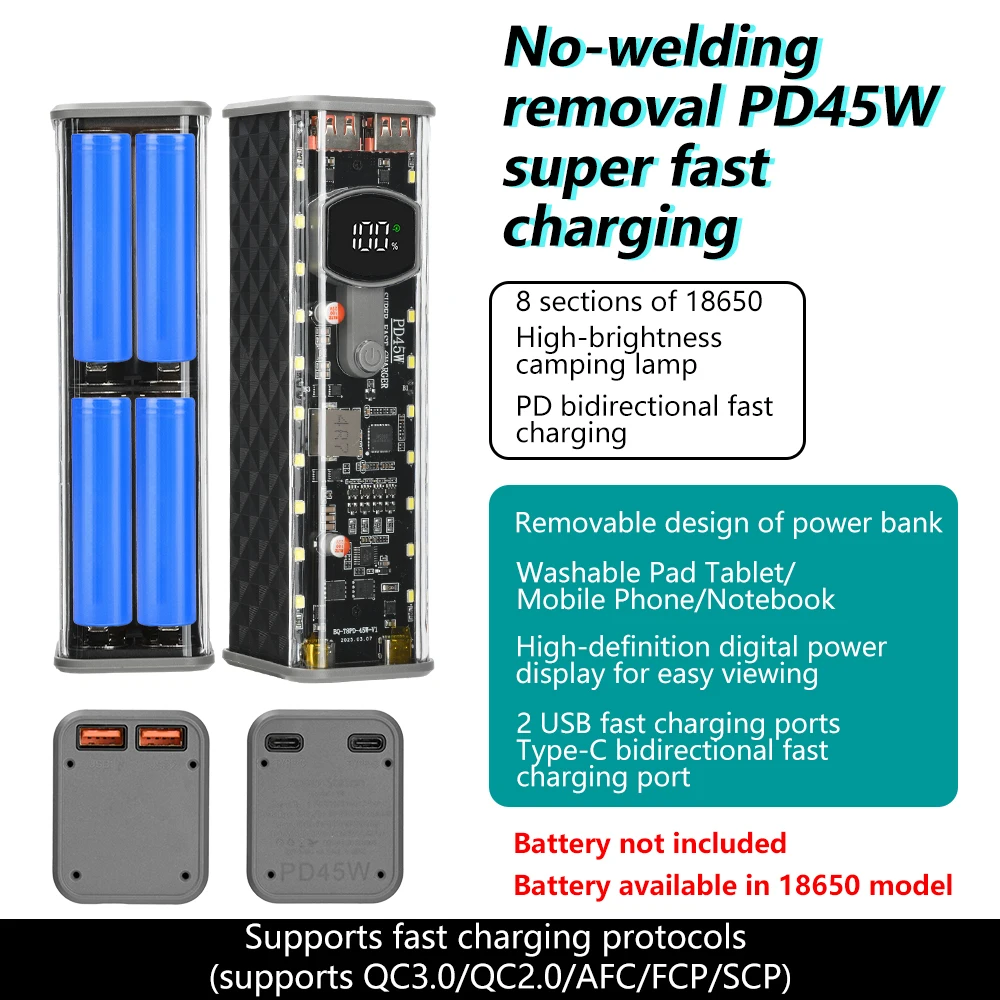

45W 8x 18650 Dual USB
Product selling points:

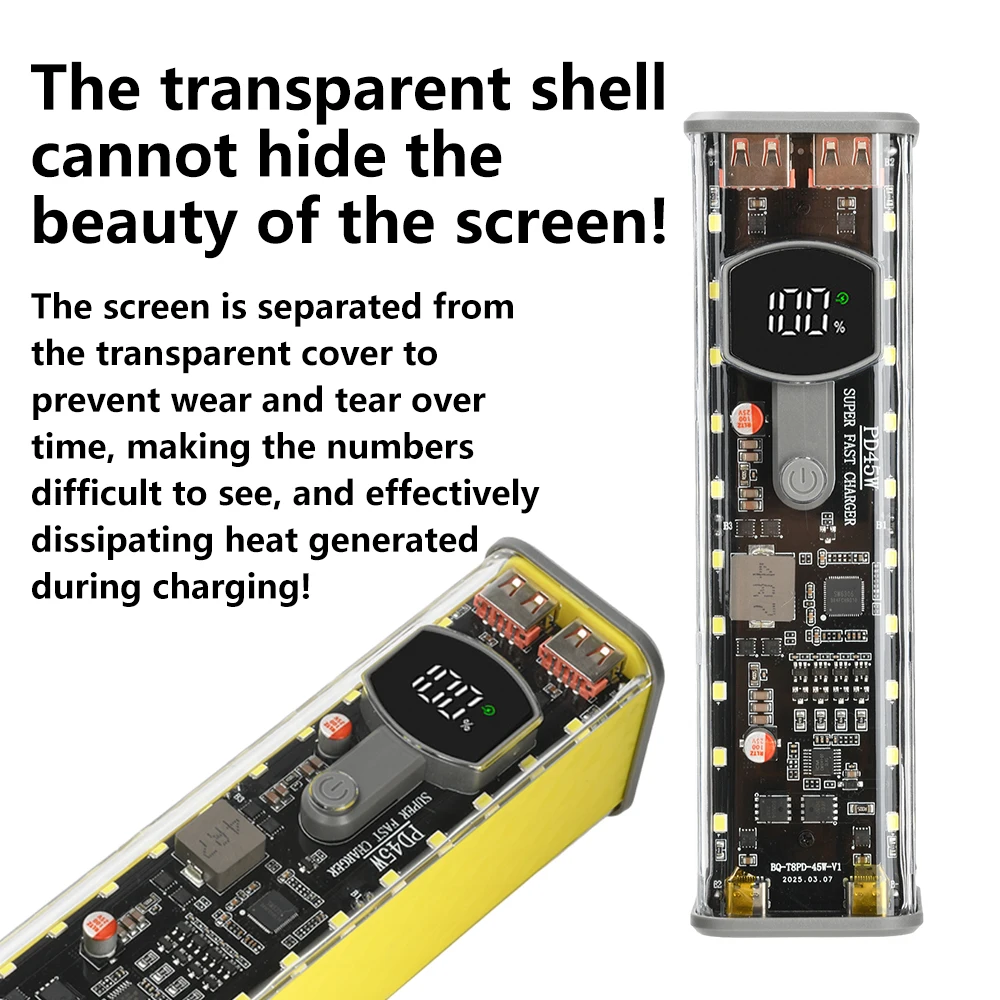

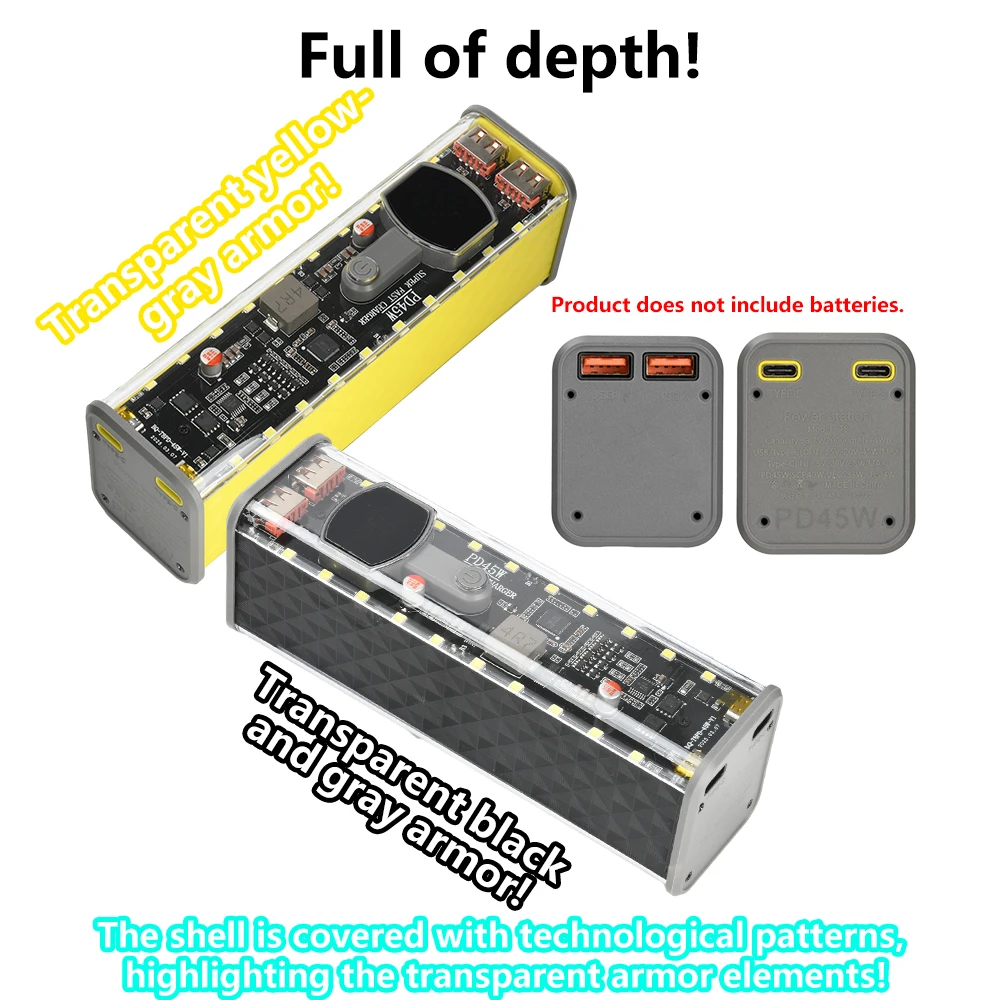

1. The transparent design of the mecha exudes a strong sense of technology, with its internal structure clearly visible, showcasing individuality

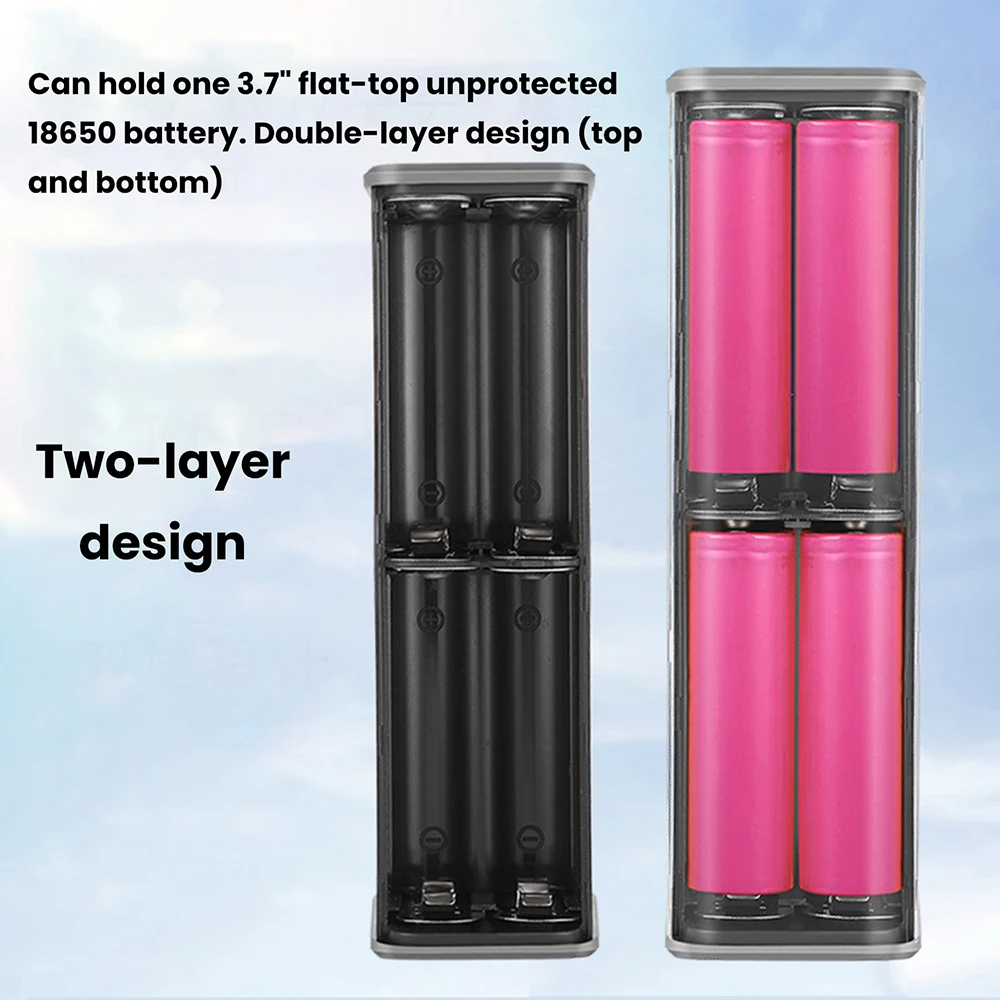

2. Supports the installation of 8 18650 batteries, with large capacity energy storage to meet long-term electricity needs

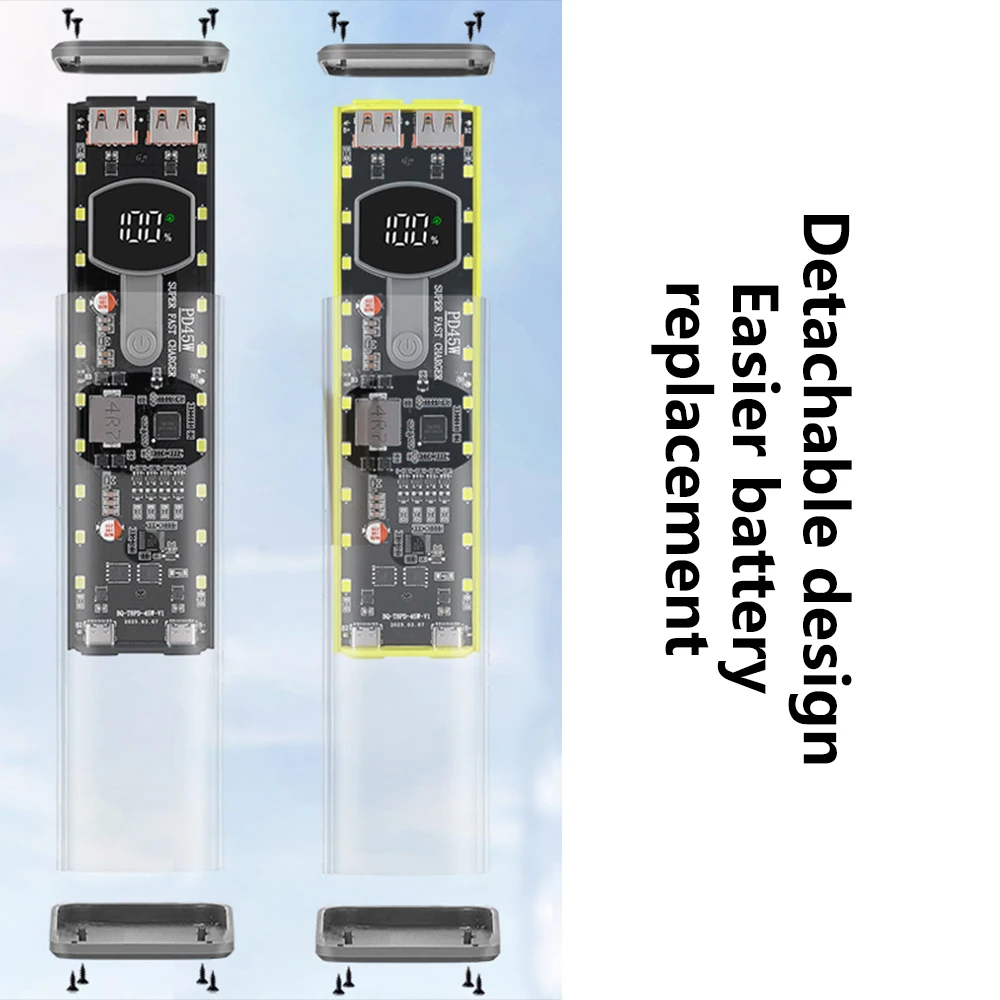

3. No welding design, easy and fast assembly, suitable for electronic enthusiasts to easily start making
4. Equipped with PD fast charging protocol, compatible with multiple devices, providing efficient and convenient charging experience

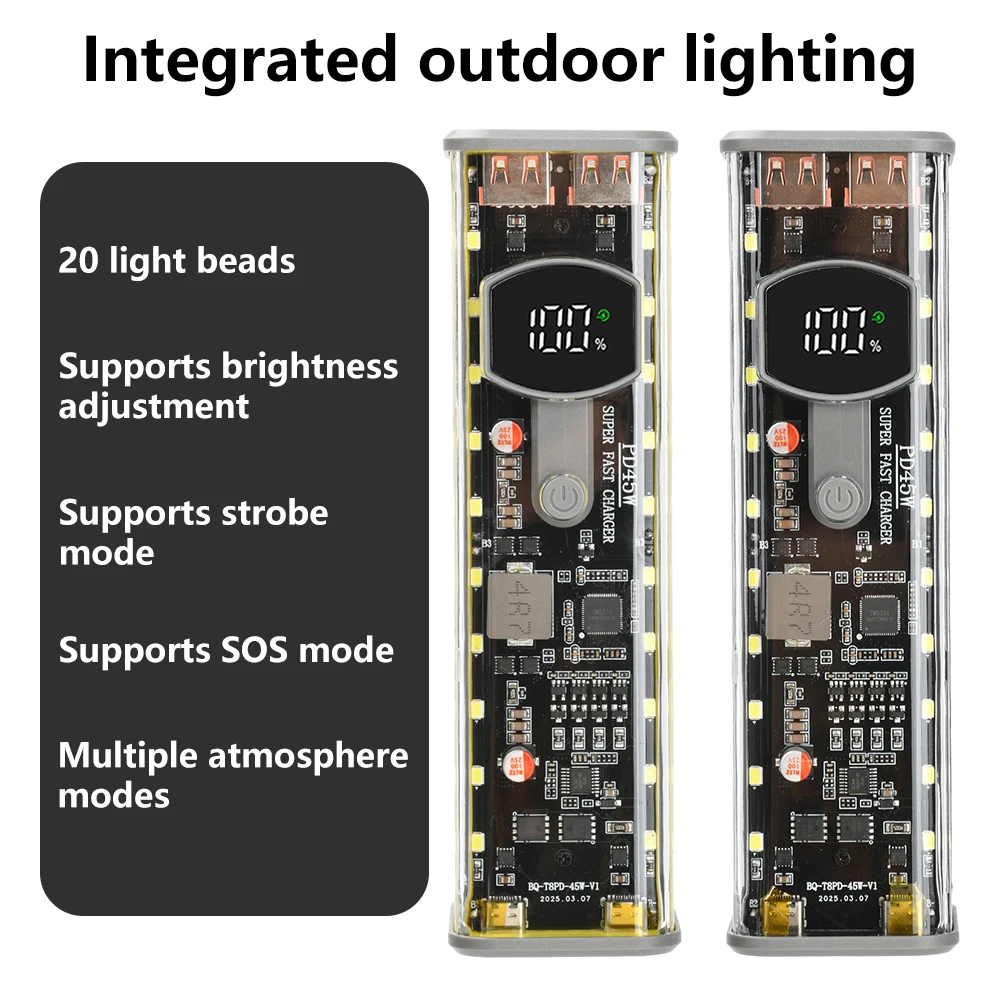

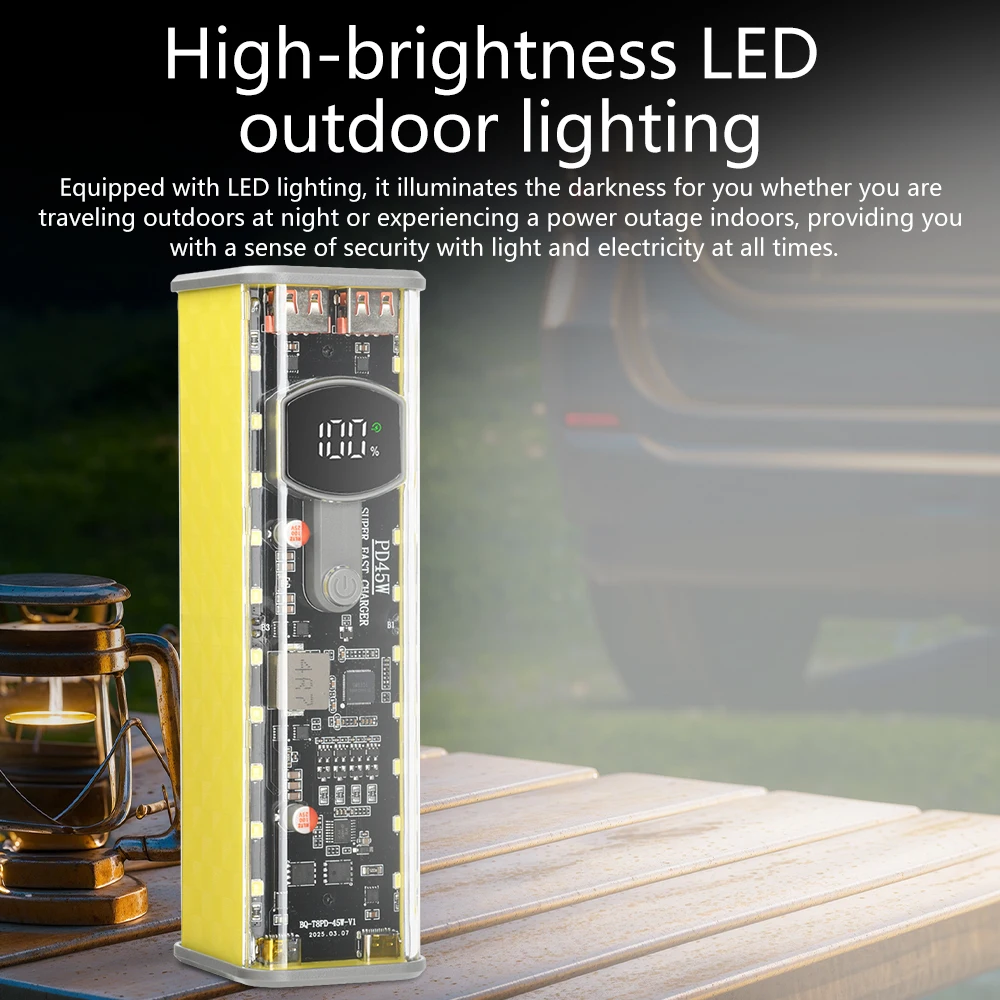

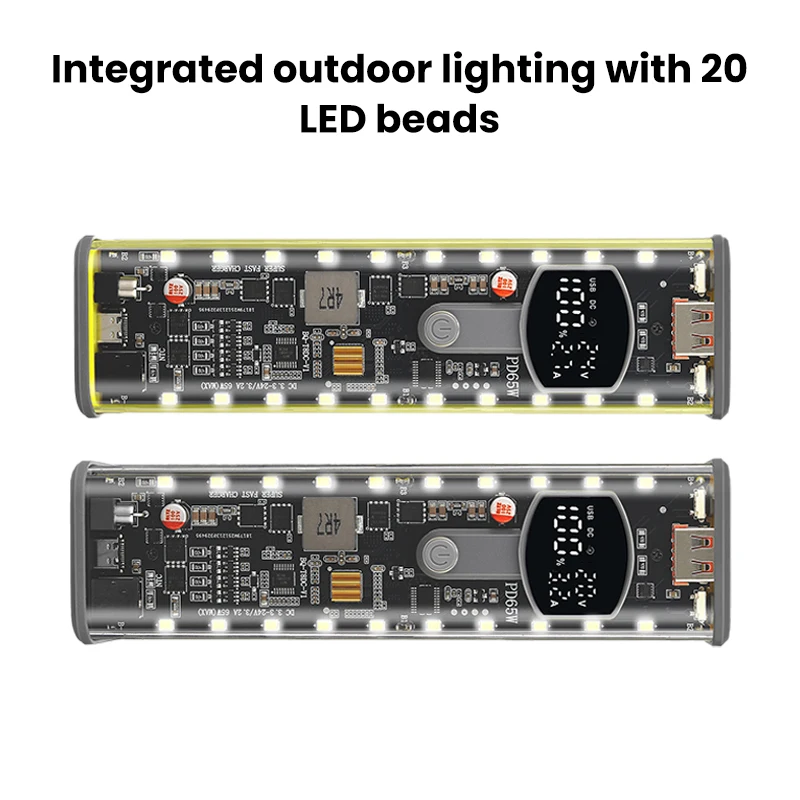

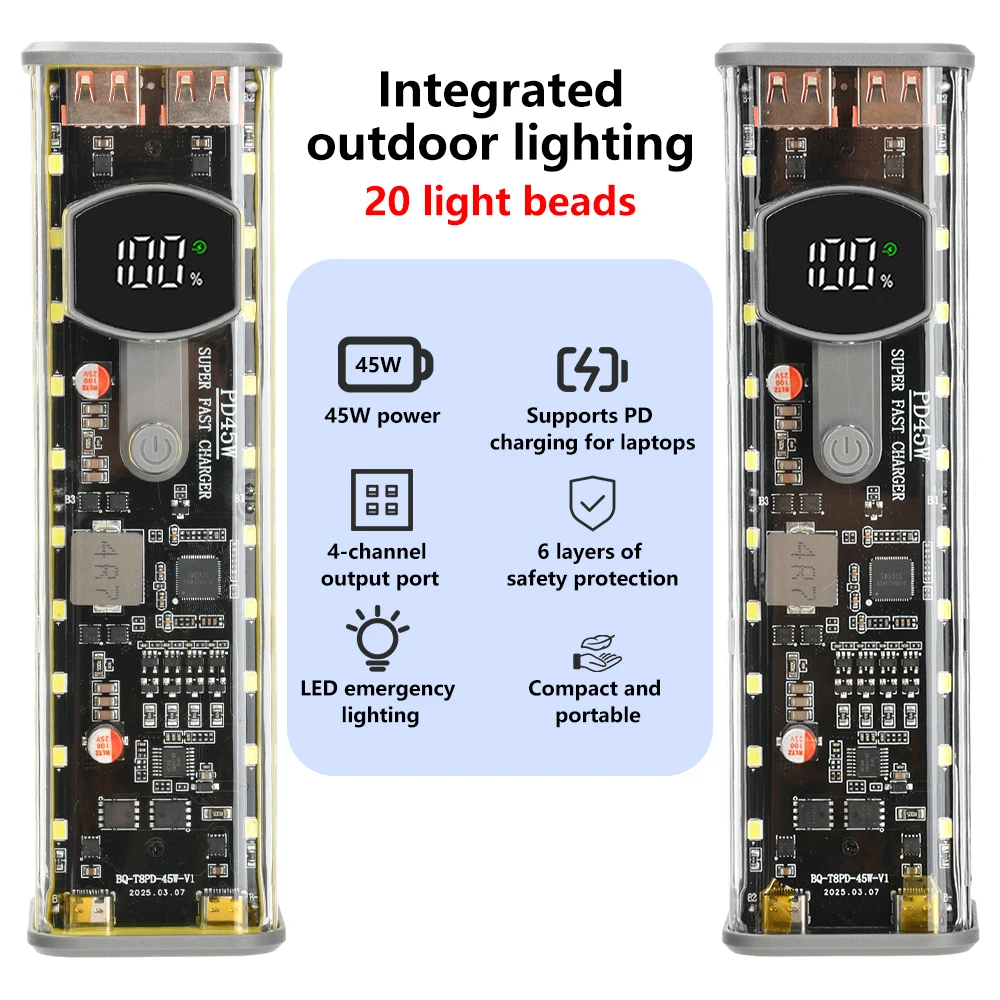

5. Built in outdoor lighting, emergency lighting at night, versatile, portable and practical
Product parameters:
PD+Flash Charge+Super Fast Charge+Fast Charge Version Parameters:
Output power: 22.5W (peak 25W)

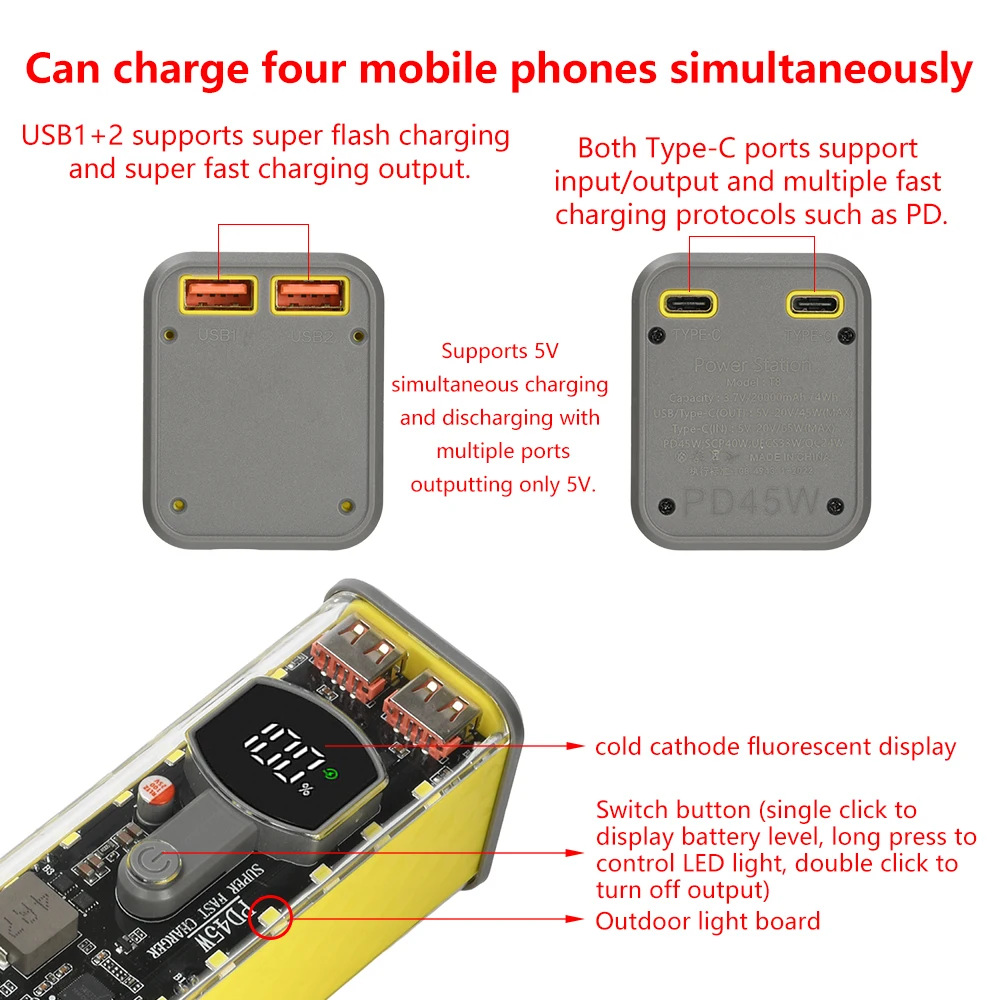

USB 1+2 output: 5V/3.1A, 9V/2.5A, 12V/1.87A (multi port simultaneous output only 5V)
IN1 input (IP): 5V/2A (simultaneous input not supported)
IN2 input (Micro): 5V/3A, 9V2A (only 5V when charging and discharging)

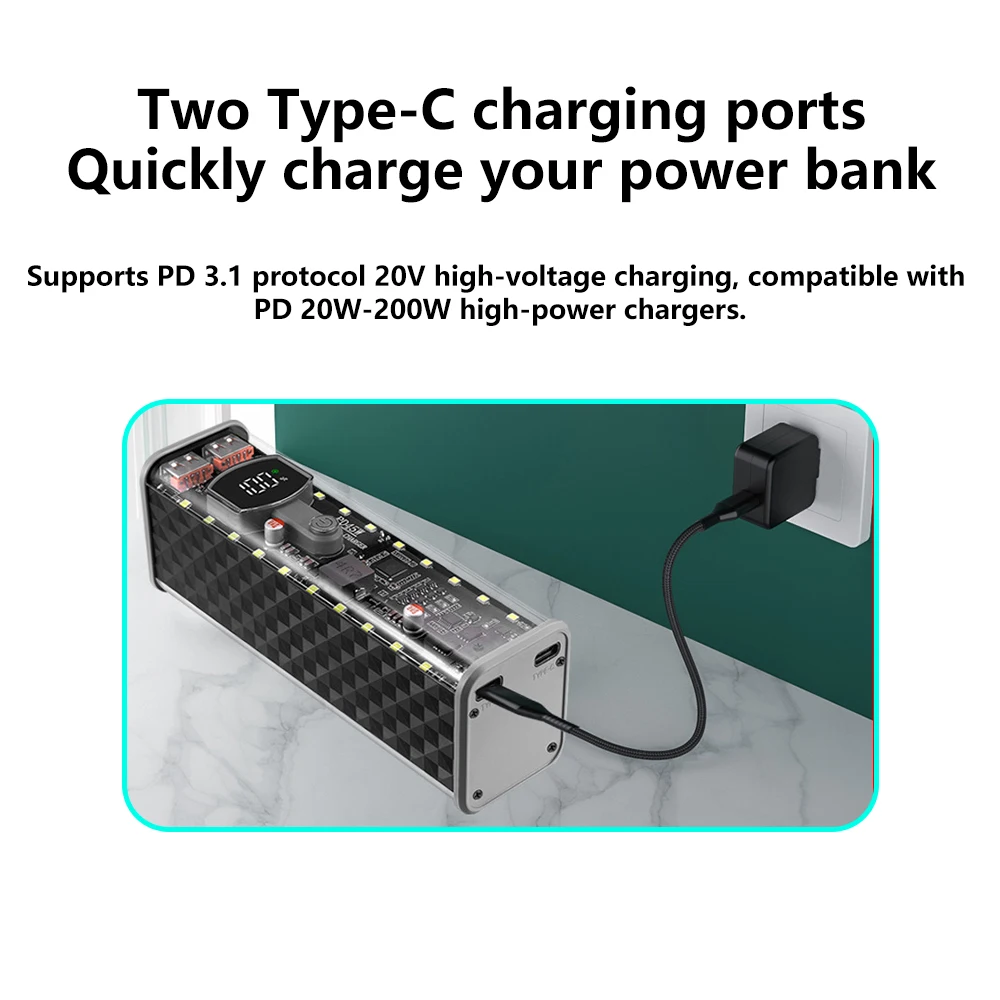

Type-C input: 5V/3A, 9V/2A, 12V/1.5A;
Type-C output: 5V/3.1A, 9V/2.22A, 12V/1.67A (only supports PD protocol for output)
Key function: Click to display battery level; Long press to turn on the LED light, then click to switch the light control mode

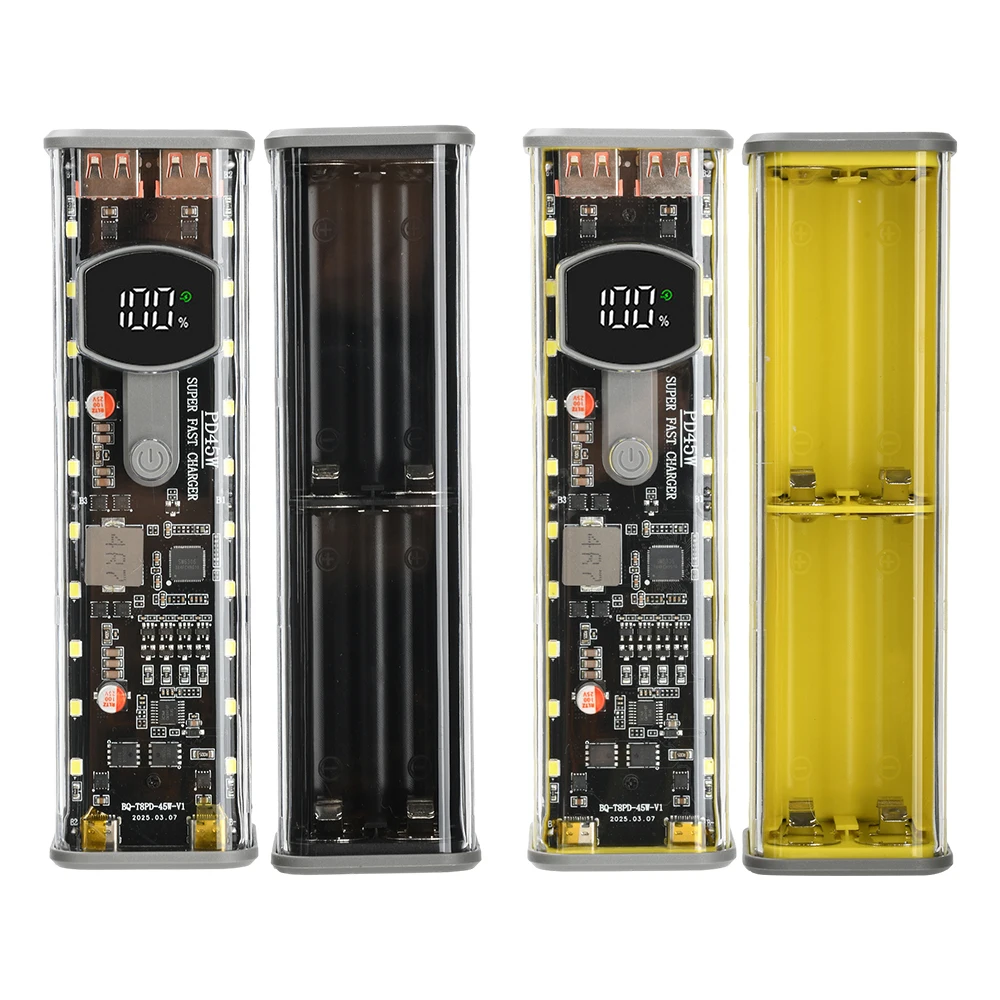

Color: Black frame+gray+transparent, yellow frame+gray+transparent
Effective voltage: 3.15V-4.15V (spring voltage drop)
Capacity requirement: The minimum actual capacity of the battery pack cannot be less than 10000 milliampere hours, otherwise the battery will not be able to discharge completely before the battery runs out

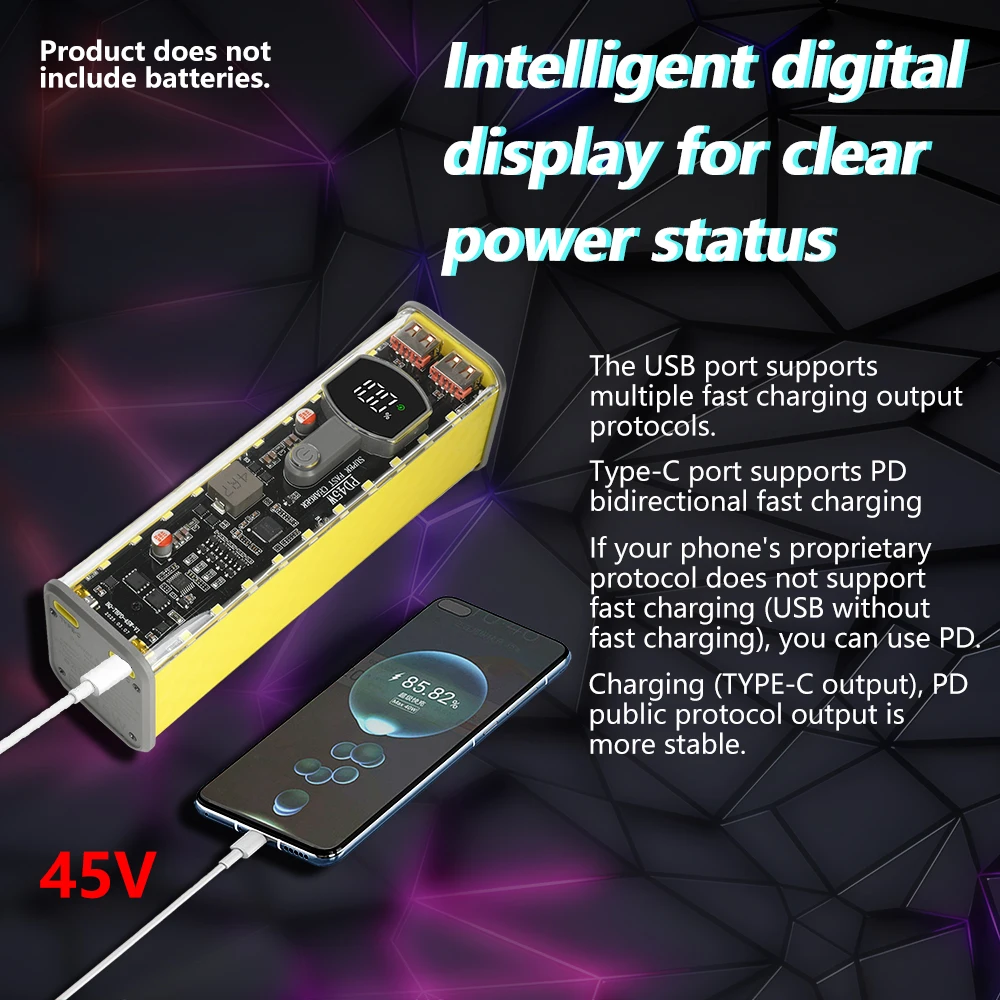

Note: If the private protocol of the phone does not support (USB does not have fast charging), PD charging (TYPE-C output) can be used, and PD public protocol output is more stable.
Fast charging specifications (supporting protocols):
(With a data transmission charging cable, communication handshake can be successful with one of the following protocols)
Supports 5V, 9V, 12V voltage range input/output
Compatible with BC1.2 and IP (charging cable control)
Integrated SCP 22.5W Super Fast Charging Output Protocol
Integrated QC2.0/QC3.0 output fast charging protocol
Integrate FCP and AFC input/output fast charging protocols
Support PPS, PE2.0, and SFCP output fast charging
Supports PD2.0/3.0, PE1.1 input/output protocols
Charging specifications:
Supports 18W charging, with automatic adjustment of battery current, and a charging current of up to 5A.

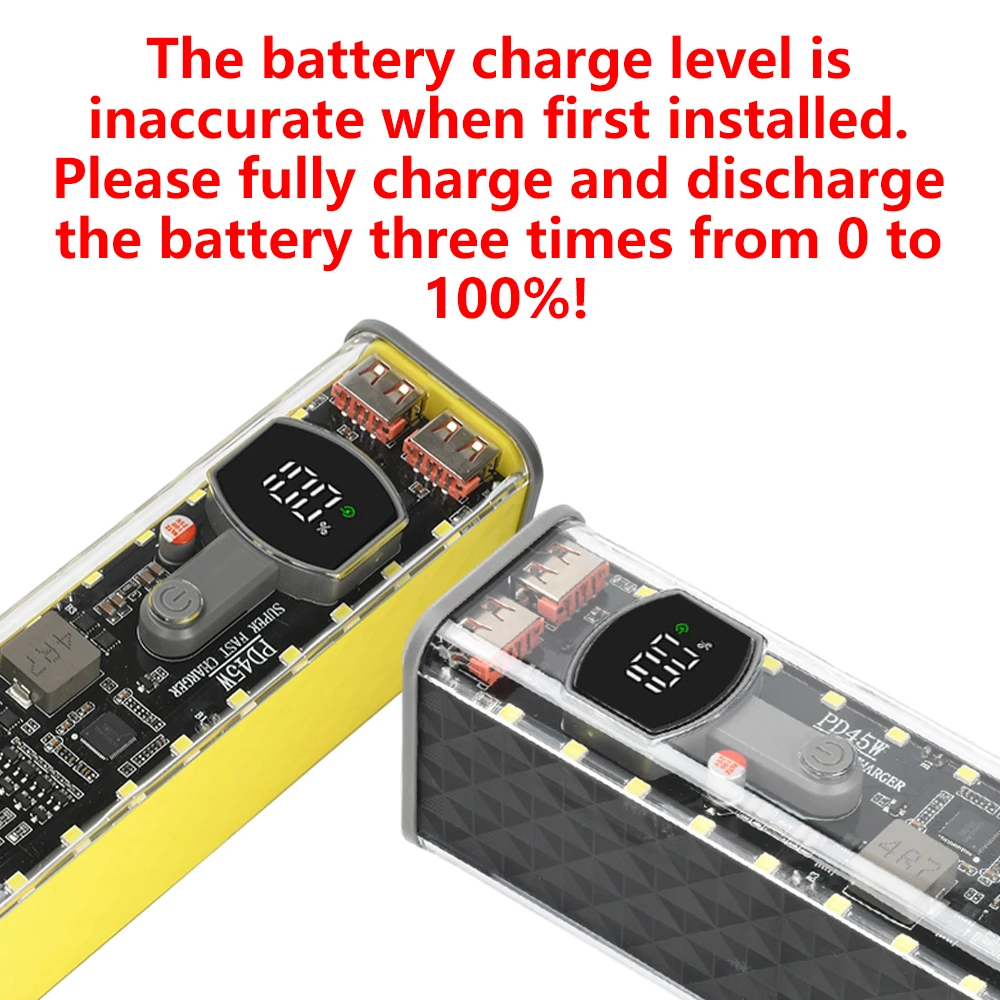

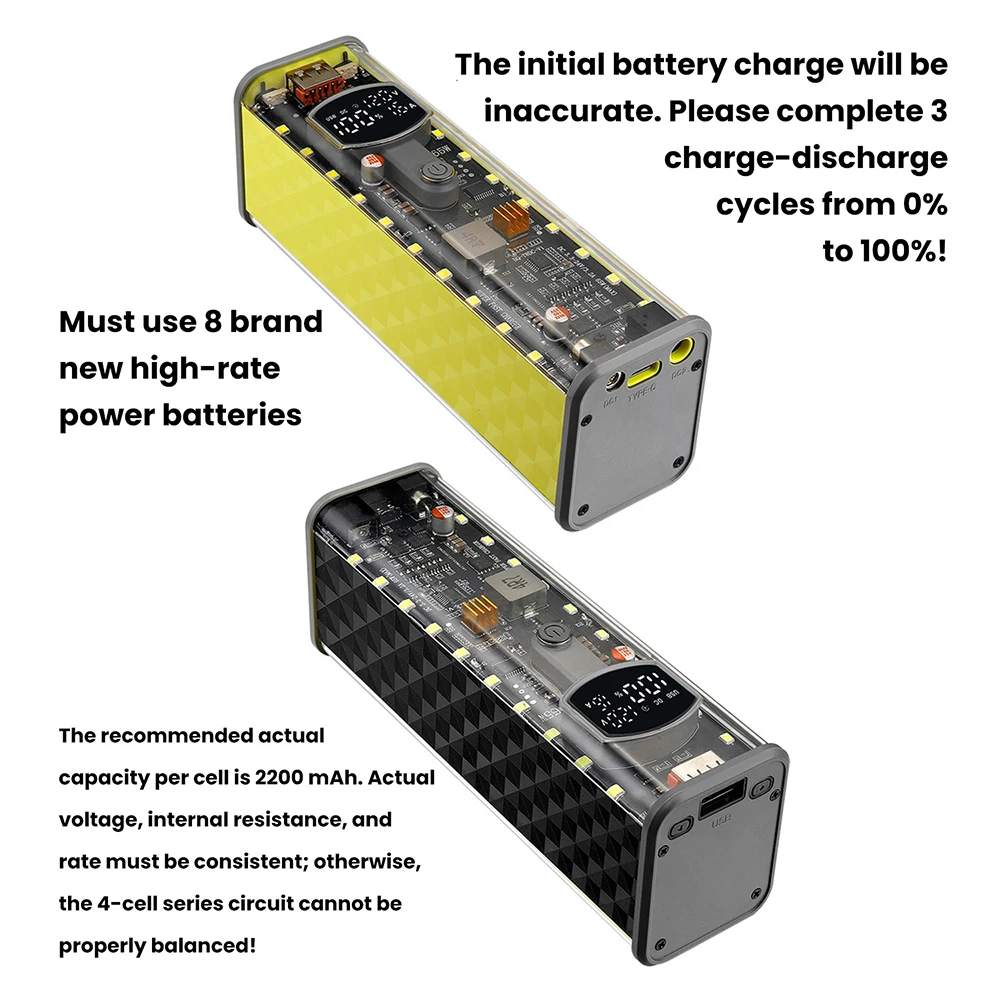

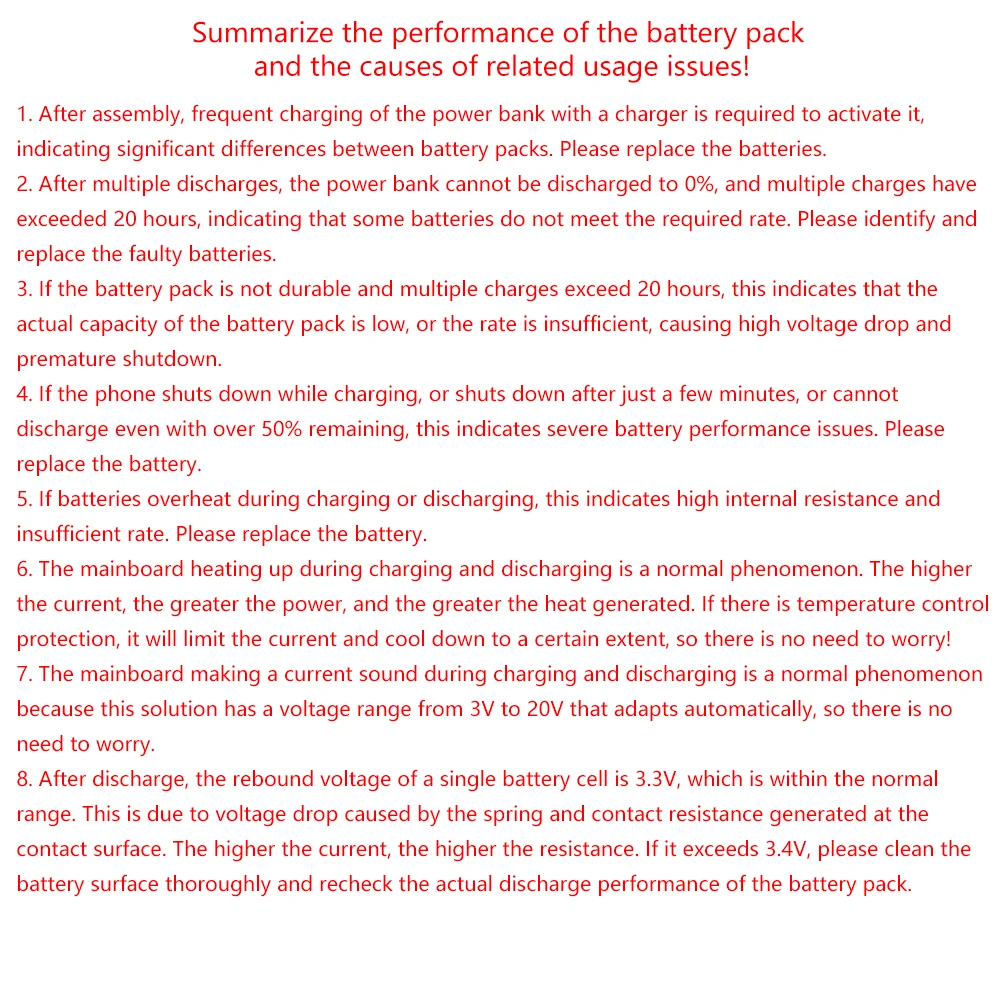

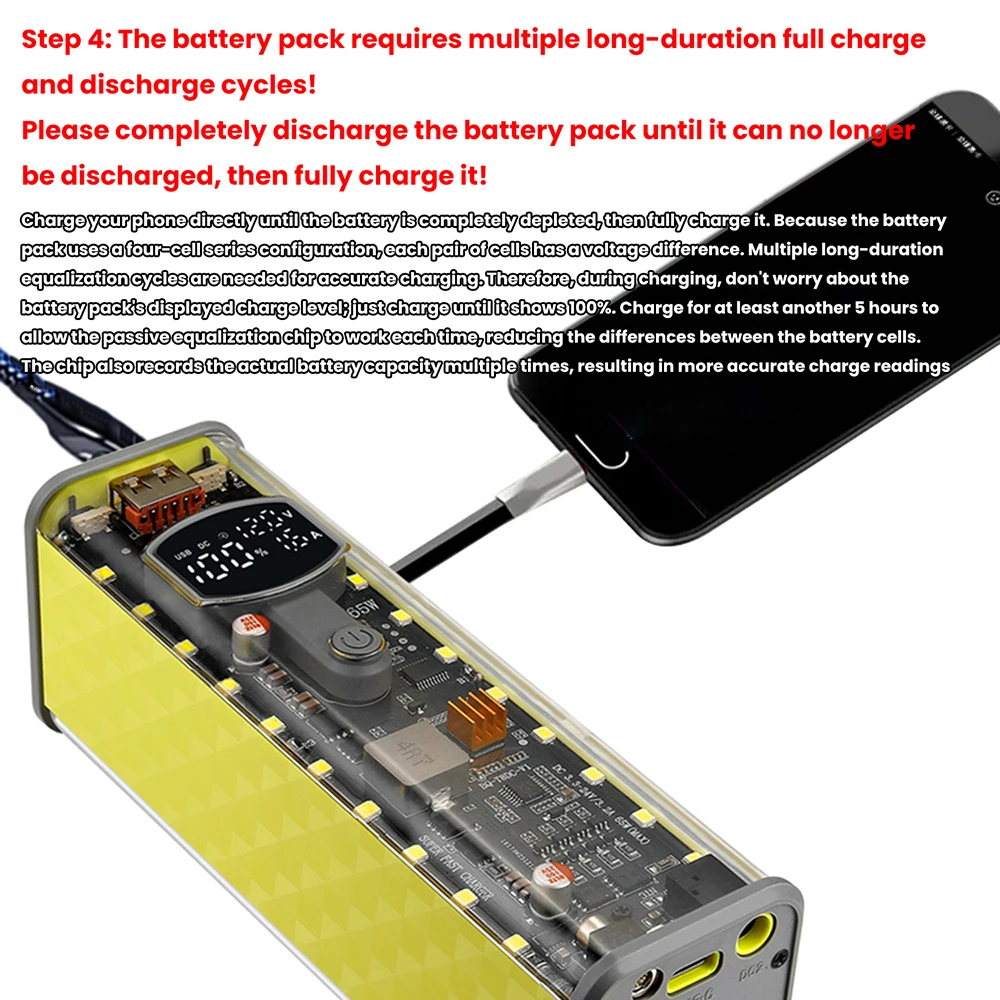

(It is recommended to start charging from 0 to 100 for the first three times, and then charge for a few more hours to allow the battery to fully balance charging and discharging, in order to accurately charge the battery.)
Discharge specifications:
Output current capability: 5V/3.1A; 9V/2.22A； 12V/1.67A
Support wire compensation, synchronous switch discharge 5V/2A efficiency can reach over 95%
Built in input overvoltage and undervoltage protection; Integrated output overcurrent, overvoltage, and short-circuit protection; Comes with battery overcharge, overdischarge, and overcurrent protection; Built in IC over temperature protection

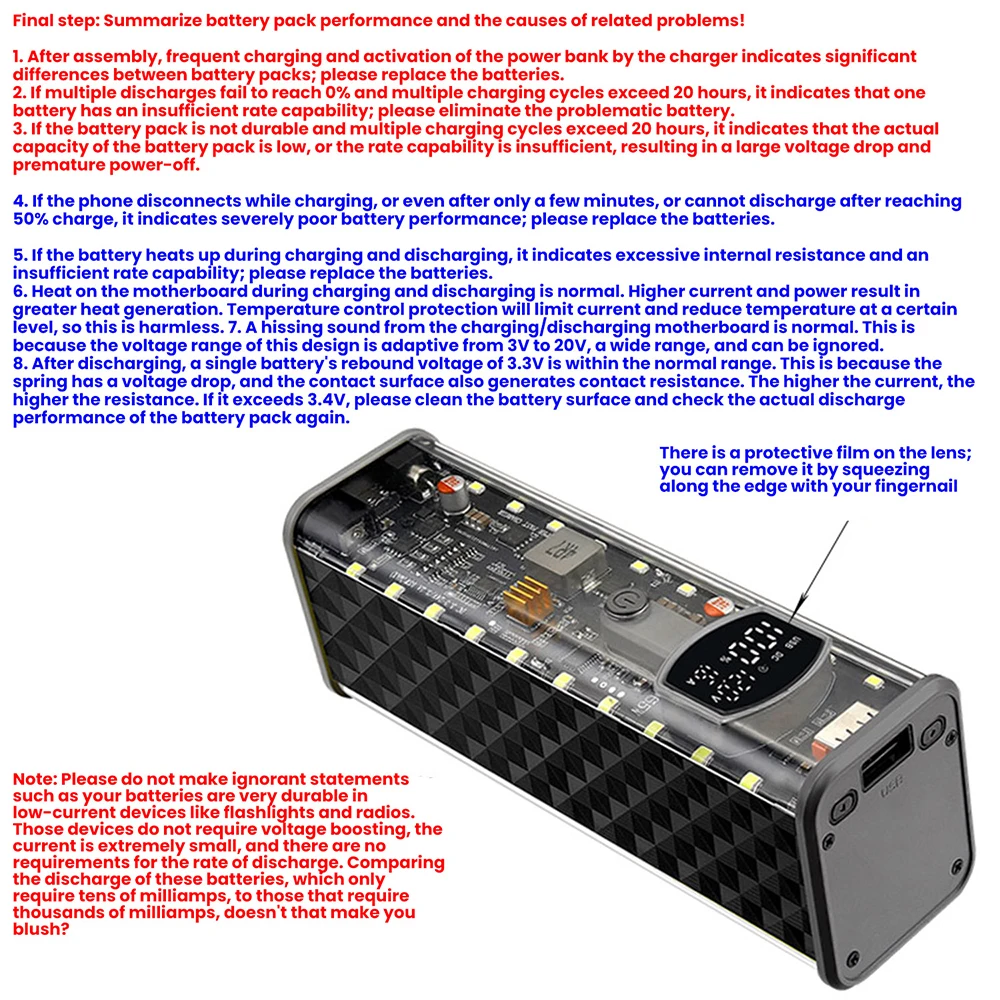

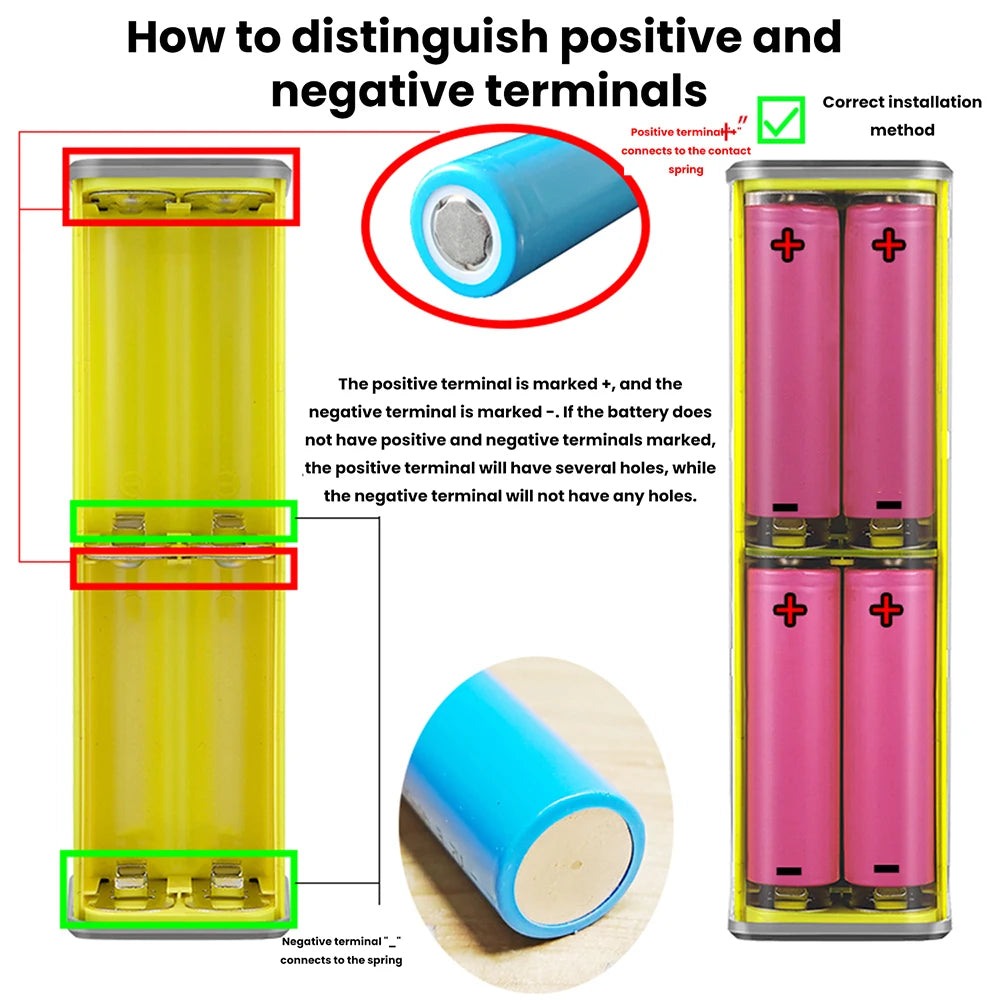

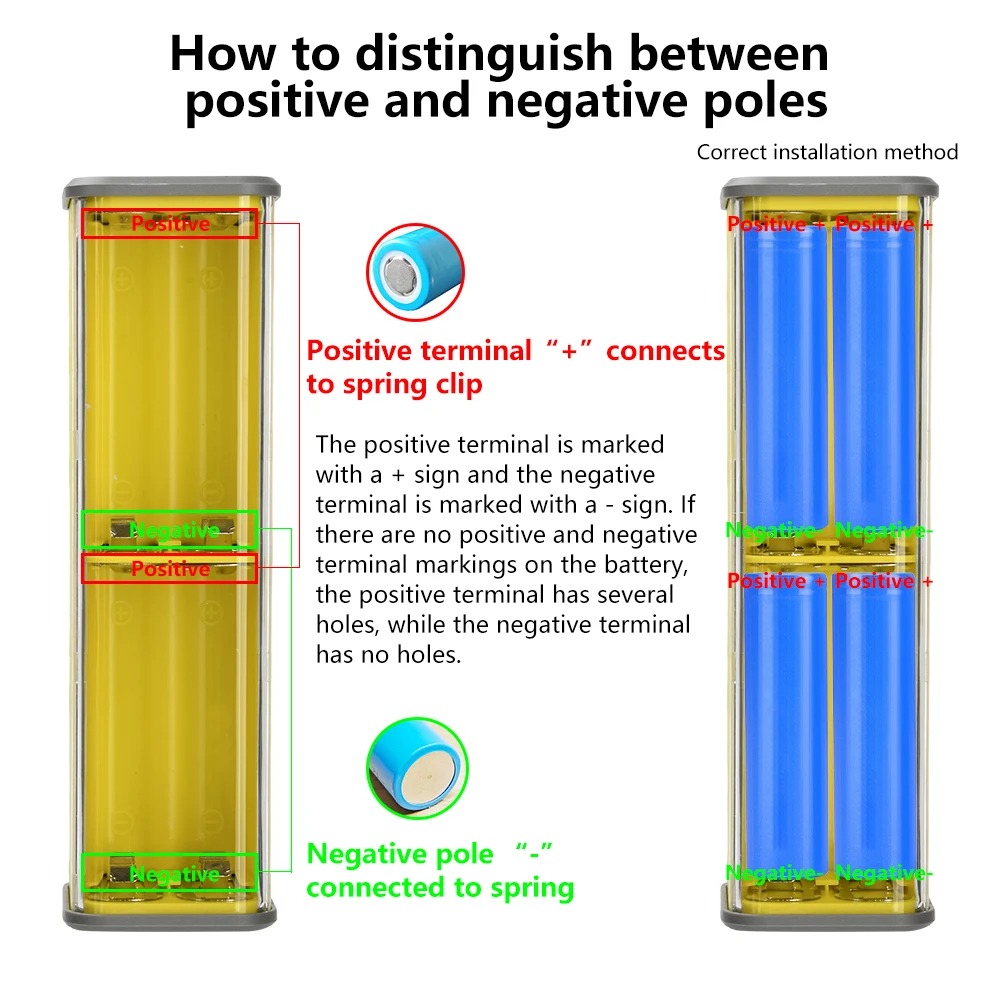

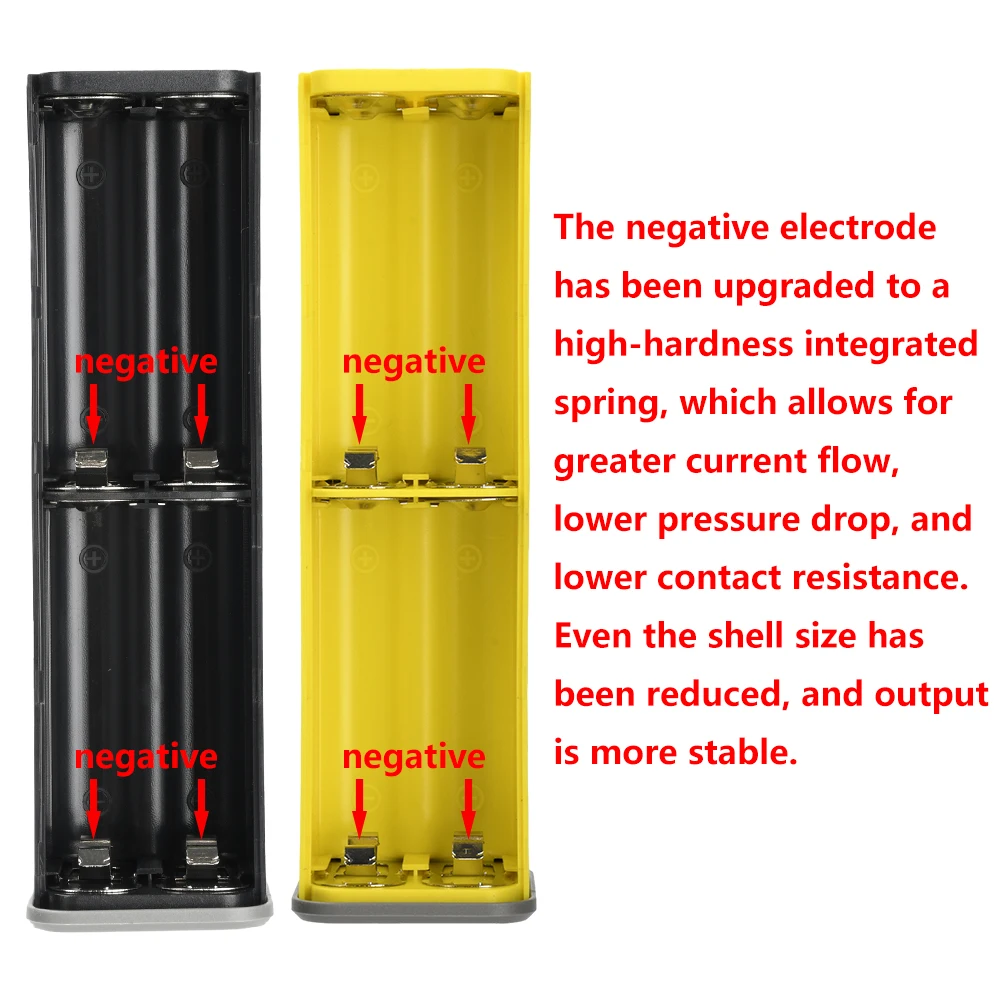

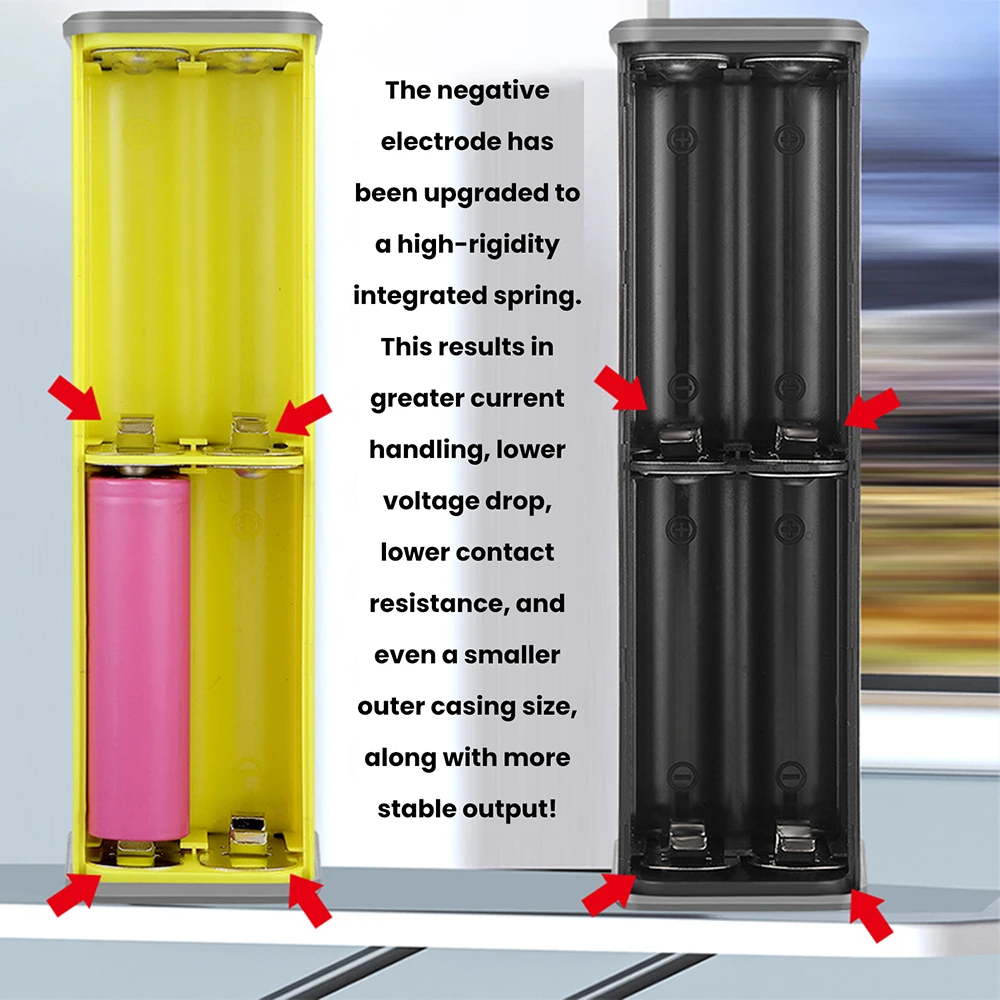

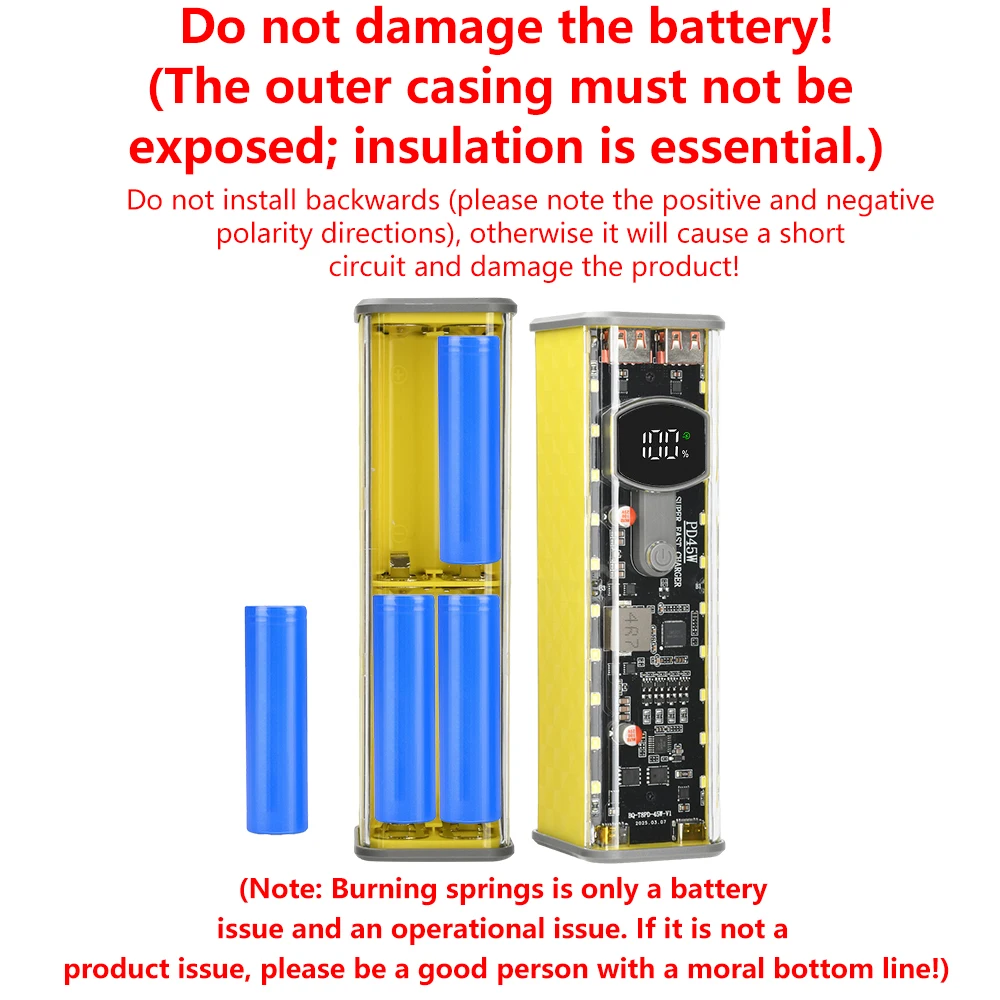

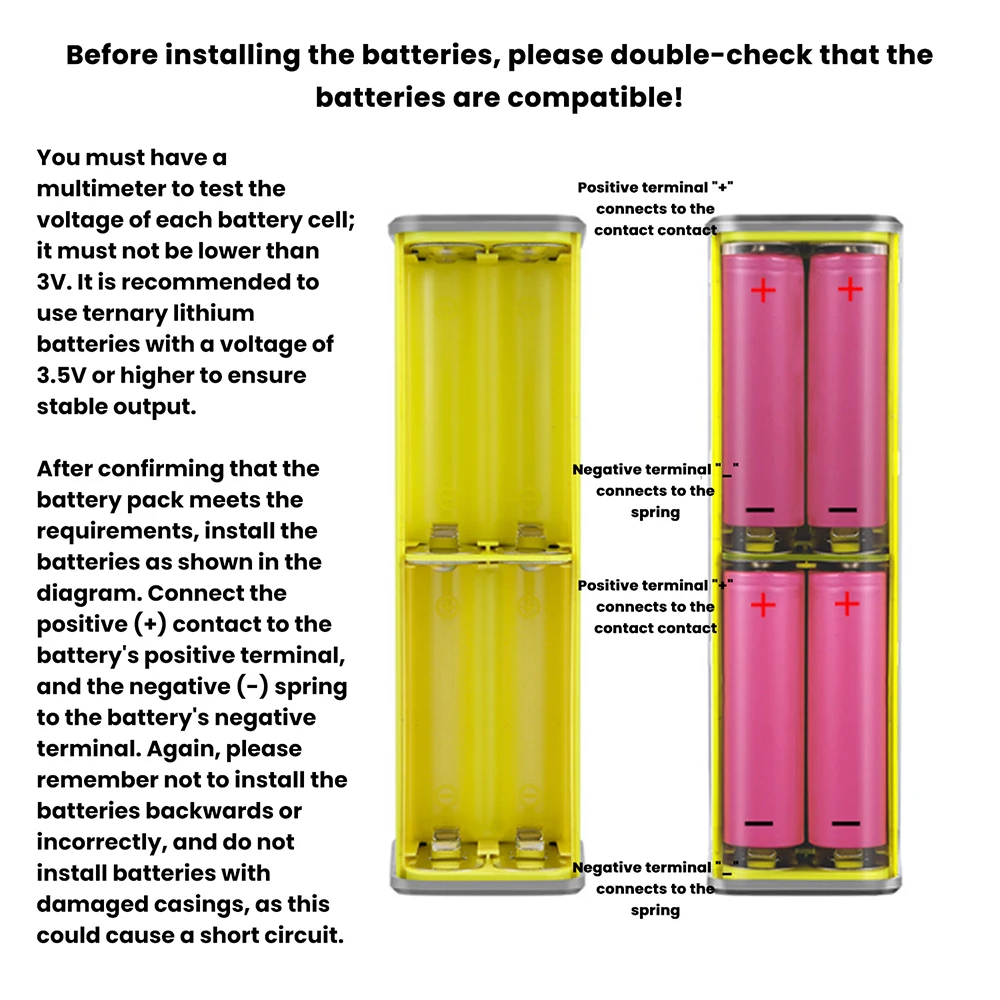

Attention: The product only allows the installation of 21700 (21 * 70MM) flat head batteries with a voltage between 3.5V-4.2V. Batteries that have been used for more than two years and have undergone more than 300 cycles are generally not durable; I found that the charging is intermittent and can only be used for a few minutes, ten minutes, and even half a time the phone cannot be charged. These are all reasons for poor battery performance. Additionally, the product does not support modification or welding. We are not responsible for after-sales service if batteries that do not meet the requirements are used. The motherboard is equipped with an anti reverse chip, which does not burn the motherboard when installed in reverse. However, due to the integrated spring spring spring, battery skin breakage, battery short circuit, positive and negative series connection can cause spring burning. However, after reinstalling correctly, the motherboard can always be used normally and will not burn.

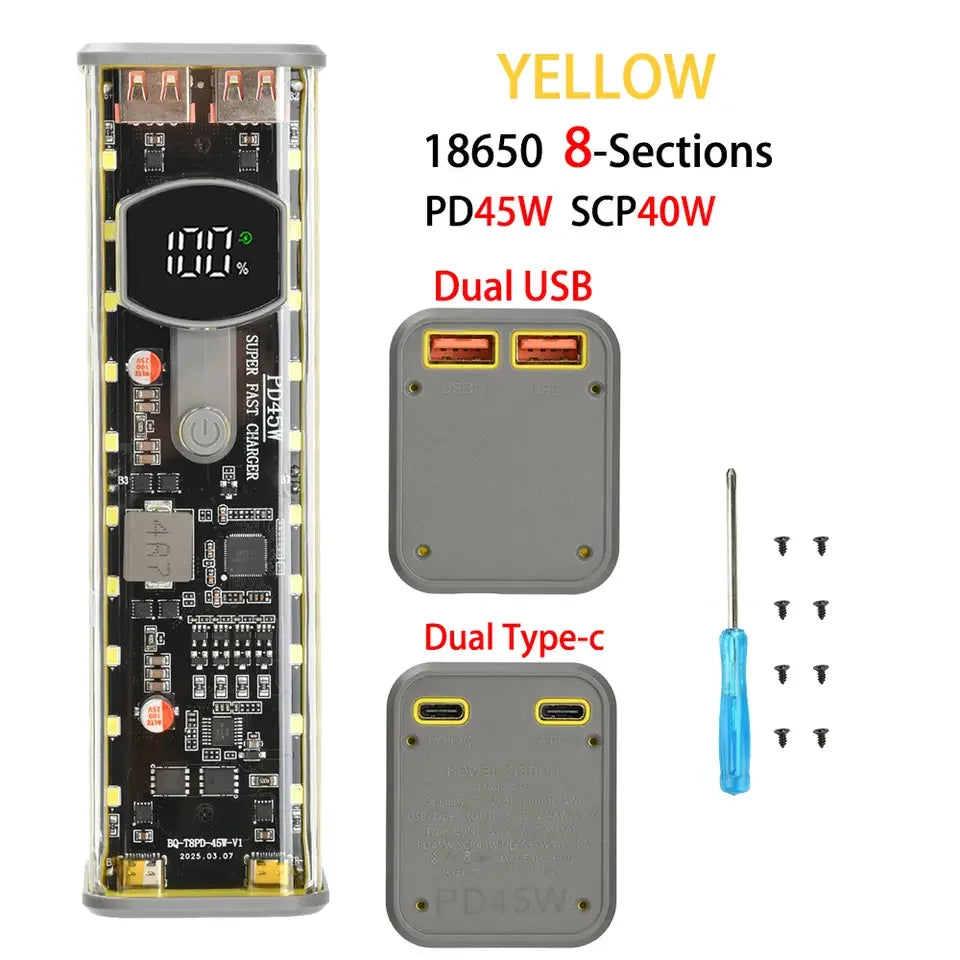

Package List:
Power bank case * 1 (excluding battery)
Accessory package * 1
